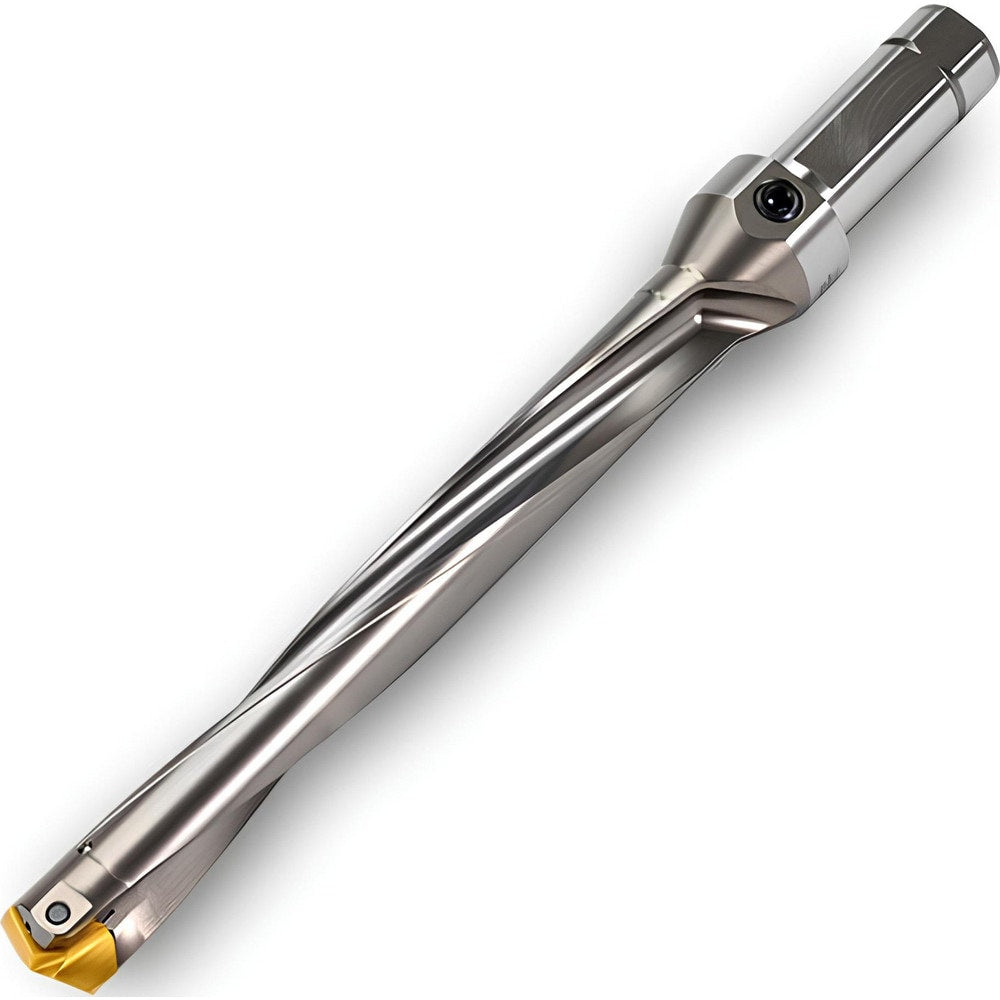

Brand: Ingersoll Cutting Tools / Part #: 6185625
Item #: 98821085
Brand: Ingersoll Cutting Tools
Model #: 6185625
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.2205 |
| Maximum Drill Diameter (Decimal Inch) | 1.2559 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 9.9600 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 31 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 31.. |
| Overall Length (Decimal Inch) | 15.1090 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 11.9490 |
| Body Length (Decimal Inch) | 11.9490 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
