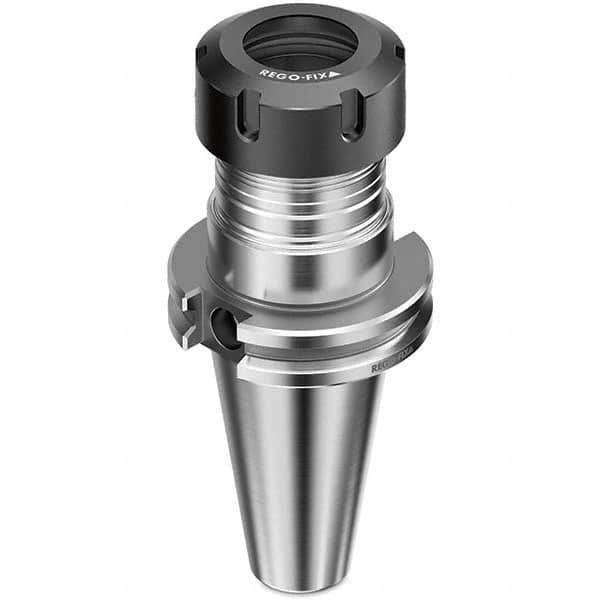

Rego-Fix - 1mm x 13mm CAT40 Taper Shank ER ER20 Collet Chuck
Item #: 79130837
Brand: Rego-Fix
Model #: 4340.12054
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Inch) | 4 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Nose Diameter (mm) | 34.00 |
| Maximum RPM | 25000 |
| Locknut Diameter (Decimal Inch) | 1.3396 |
| Projection (Decimal Inch) | 4.0000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (mm) | 34.00 |
| Additional Information | With Hi-Q Nut |
