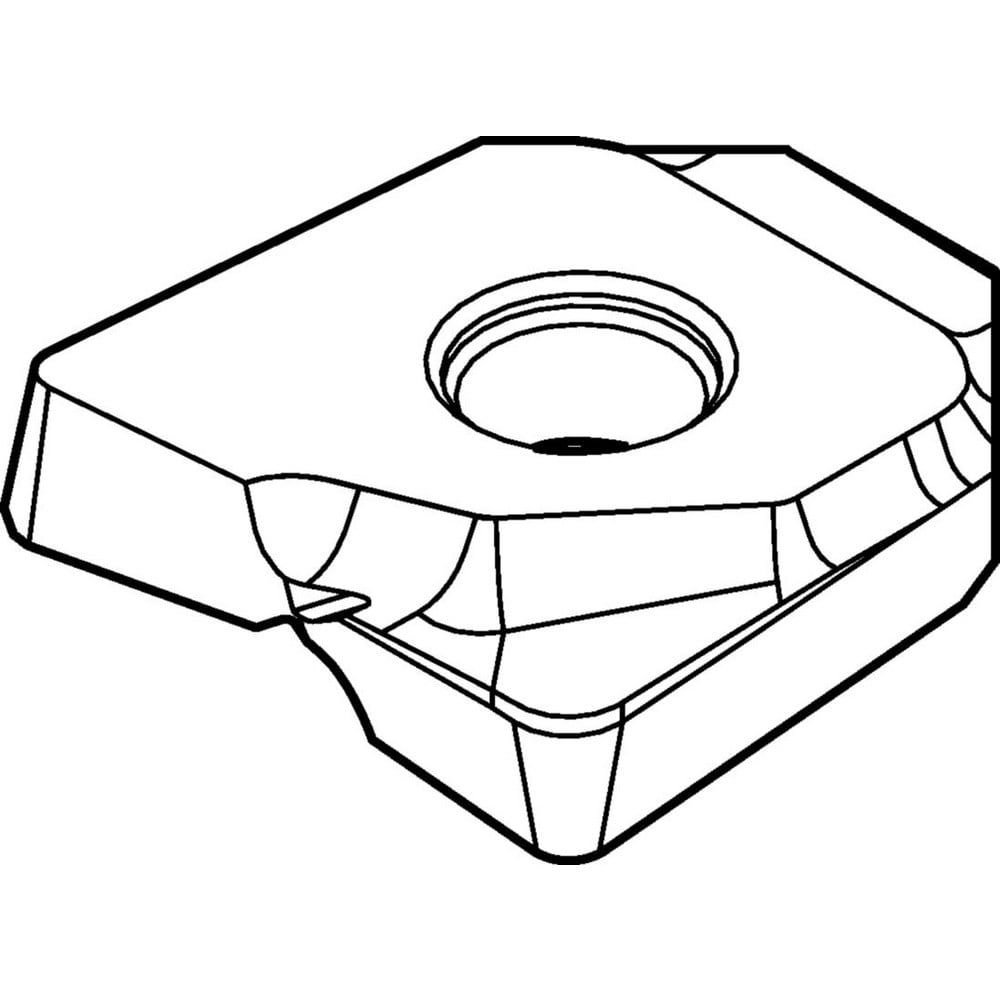

Brand: Widia / Part #: 6724710
Item #: 95155545
Brand: Widia
Model #: 6724710
Product Specifications
| Insert Style | M270 |
| Insert Size Code | TF12 |
| Insert Size | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | WU10PM |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Corner Radius (Decimal Inch) | 0.0396 |
| Insert Hand | Right Hand |
| Series | M270 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4880 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Irregular |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | M270TF12R1 |
| Iso Code | M270TF12R1 |
| Manufacturers Catalog Number | M270TF12R1 |
| Cutter Series Compatibility | M270 BACK DRAFT IN |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Irregular |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 75 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Width (Mm - 2 Decimals) | 12.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4880 |
