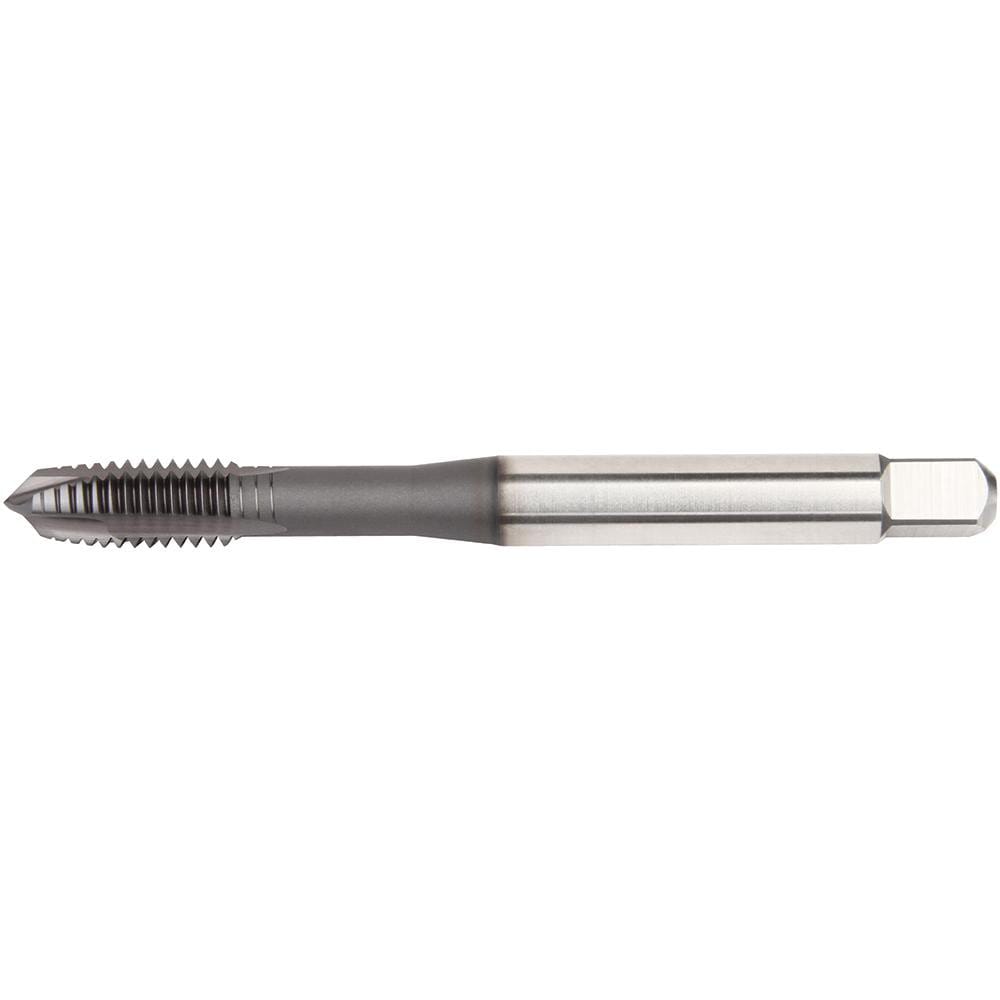

Brand: Widia / Part #: 5366647
Item #: 93305613
Brand: Widia
Model #: 5366647
Product Specifications
| Thread Size (mm) | M2x0.4 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | TiCN |
| Threads per Inch | 64 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 13.00 |
| Thread Pitch (mm) | 0.40 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (mm) | 7.00 |
| Overall Length (mm) | 45.0000 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Square Length (mm) | 5.00 |
| Square Size (mm) | 2.10 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
