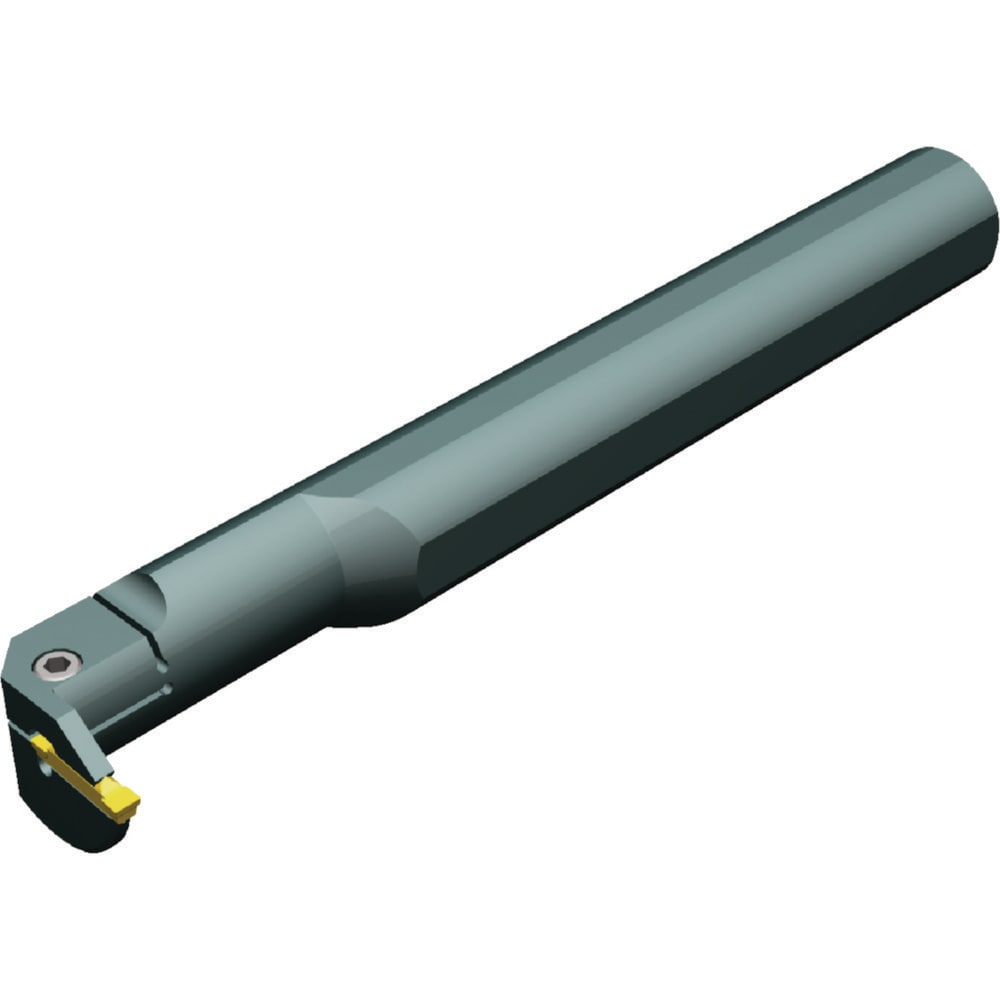

Brand: Widia / Part #: 5423883

Brand: Widia / Part #: 5423883


Item #: 97977714
Brand: Widia
Model #: 5423883

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 3
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (mm) 19.00
Minimum Groove Width (mm) 3.00
Maximum Groove Width (mm) 3.00
Toolholder Style WMTEL
Insert Holding Method Clamp
Insert Compatibility WMTS300M3P03PT
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 32.00
Shank Height (mm) 0.00
Series WMT
Shank Length (mm) 186.000
Overall Length (mm) 250.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (mm) 45.00
Center to Cutting Edge (mm) 29.00
Minimum Hole Diameter (mm) 47.00
Head Length (mm) 64.00
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Diameter (mm) 6.40
Coolant Hole Thread Size 1/4-18 NPT
Mount Type Shank
Manufacturers Catalog Number A32SWMTEL0319M
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WMTS300M3P03PT
Coolant Through Yes
Minimum Bore Diameter (mm) 47.000
Maximum Bore Depth (mm) 64.00
$ 270.39
