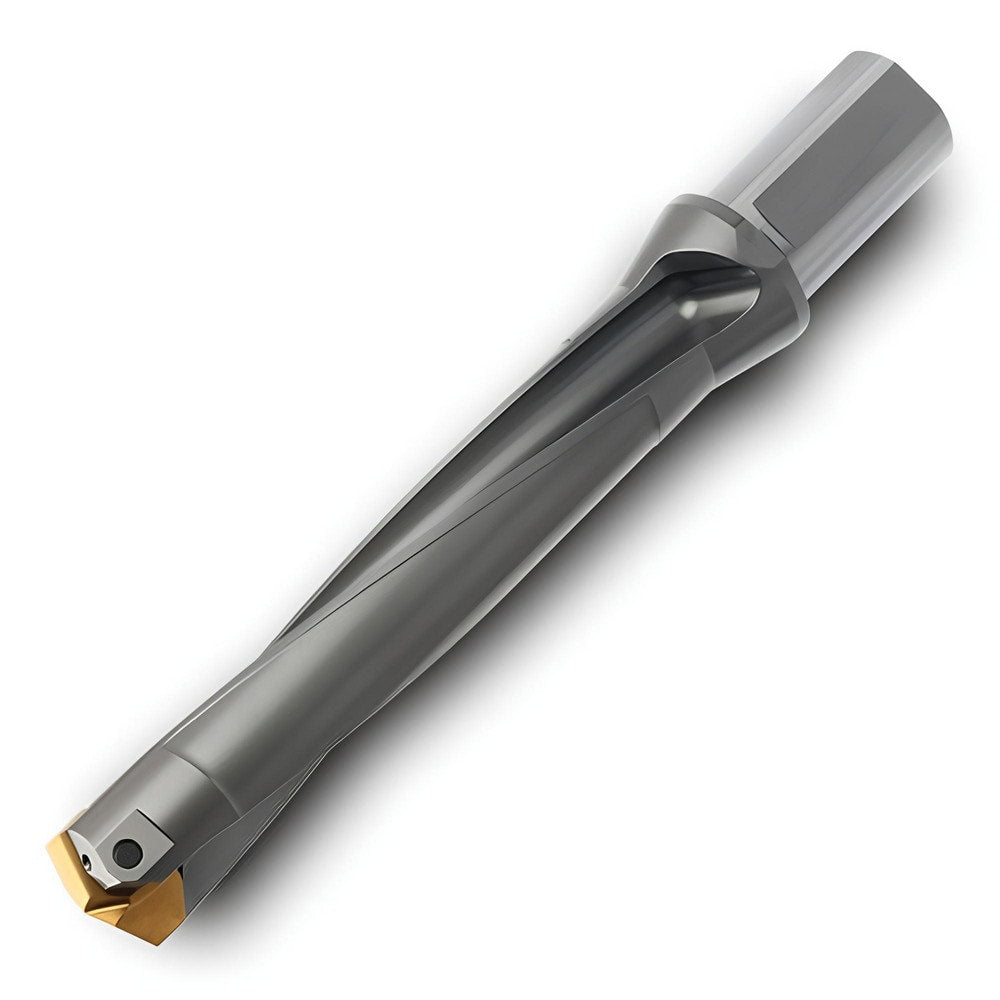

Brand: Ingersoll Cutting Tools / Part #: 6192335
Item #: 98755820
Brand: Ingersoll Cutting Tools
Model #: 6192335
Product Specifications
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 23.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 72.60 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Insert Seat Size | 23 |
| Shank Diameter (mm) | 25.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 2300; 2350; 2380 |
| Overall Length (mm) | 147.0600 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 91.06 |
| Body Length | 91.060 |
| Shank Length (mm) | 56.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
