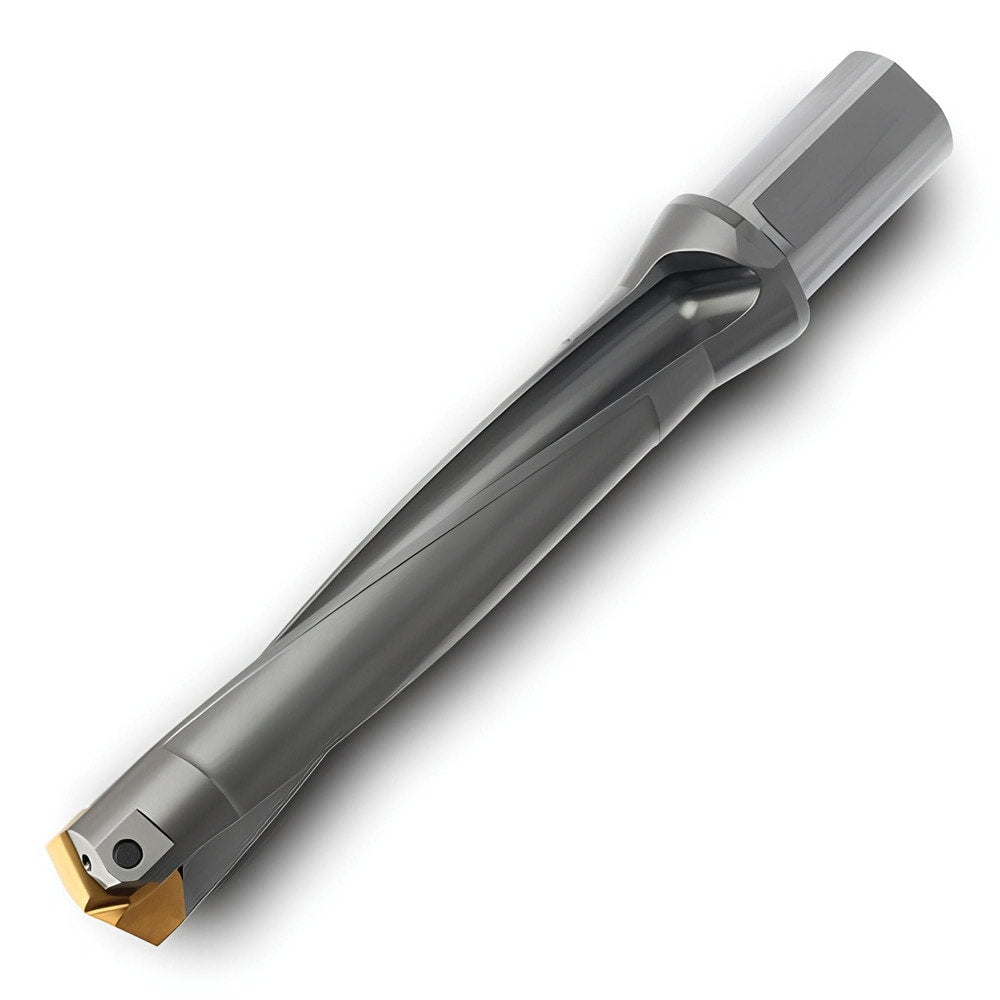

Brand: Ingersoll Cutting Tools / Part #: 6173416
Item #: 98789100
Brand: Ingersoll Cutting Tools
Model #: 6173416
Product Specifications
| Minimum Drill Diameter (mm) | 40.00 |
| Maximum Drill Diameter (mm) | 41.00 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 326.27 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Insert Seat Size | 40; 41 |
| Shank Diameter (mm) | 40.0000 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 4130; 4000; 4100; 4050 |
| Overall Length (mm) | 435.0000 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (mm) | 367.00 |
| Body Length | 367.000 |
| Shank Length (mm) | 68.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
