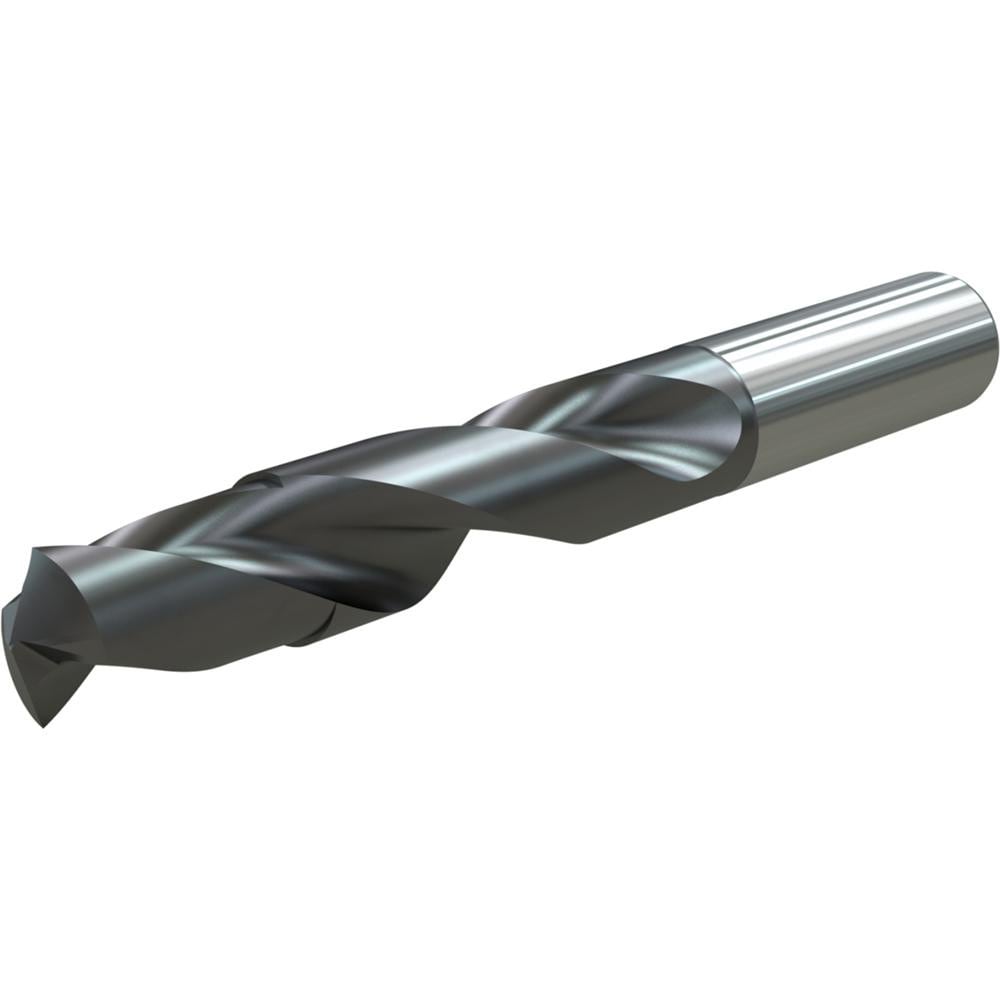

Brand: Widia / Part #: 4143020

Brand: Widia / Part #: 4143020


Item #: 58707498
Brand: Widia
Model #: 4143020

Product Specifications

Drill Bit Size (mm) 15.20
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through Yes
Shank Type Cylindrical
Number of Flutes 2
Overall Length (mm) 133.0000
Flute Length (mm) 83.00
Series VDS402
Tool Application Drilling
Flute Length x Diamter Ratio 4
Flute By Diameter Ratio 4xD
Shank Diameter (mm) 16.0000
Maximum Drilling Depth (mm) 63.00
Shank Length (mm) 48.000
Number of Flats 2
Drill Point Length (mm) 2.63
Drill Bit Diameter Tolerance -0.018000 to 0.000000 mm
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$ 287.57

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
