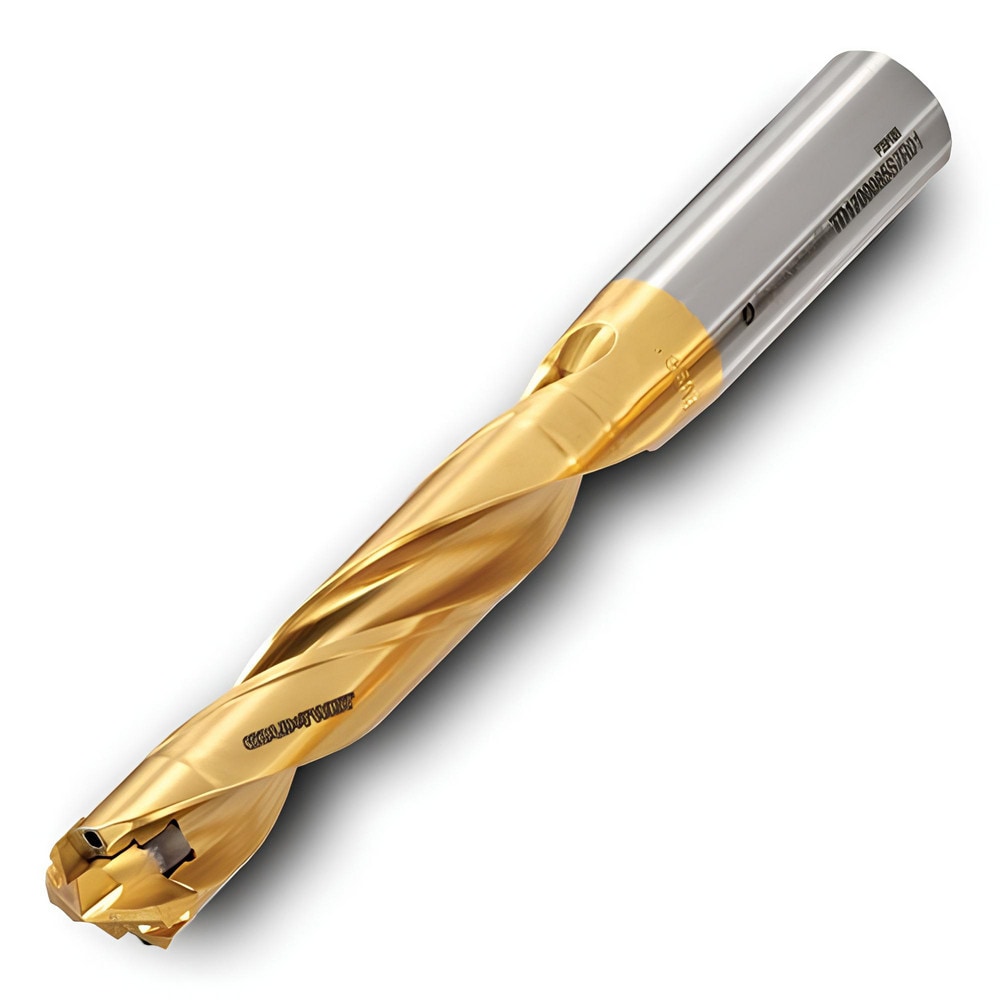

Brand: Ingersoll Cutting Tools / Part #: 3212801
Item #: 42458109
Brand: Ingersoll Cutting Tools
Model #: 3212801
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9055 |
| Maximum Drill Diameter (Decimal Inch) | 0.9409 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.5300 |
| Shank Type | Cylindrical |
| Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 23 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Compatible Insert Size Code | 23.. |
| Overall Length (Decimal Inch) | 7.8000 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 7.8000 |
| Body Length (Decimal Inch) | 7.8000 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
