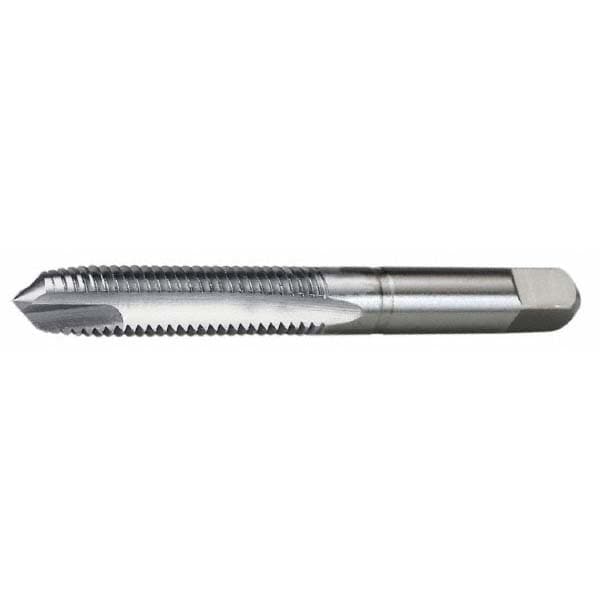

Brand: Widia / Part #: 2749995
Item #: 70736764
Brand: Widia
Model #: 2749995
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Coating/Finish | Uncoated |
| Threads per Inch | 1 |
| Material | High Speed Steel |
| Coolant Through | Yes |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 1.1250 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 1.1250 |
| Overall Length (Decimal Inch) | 2.7180 |
| Cnc Shank | Yes |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Through-Hole Threading |
| Tapping Depth (Decimal Inch) | 1.1250 |
| Square Length (Decimal Inch) | 0.3750 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | 5351/2351 |
| Style | Plug |
