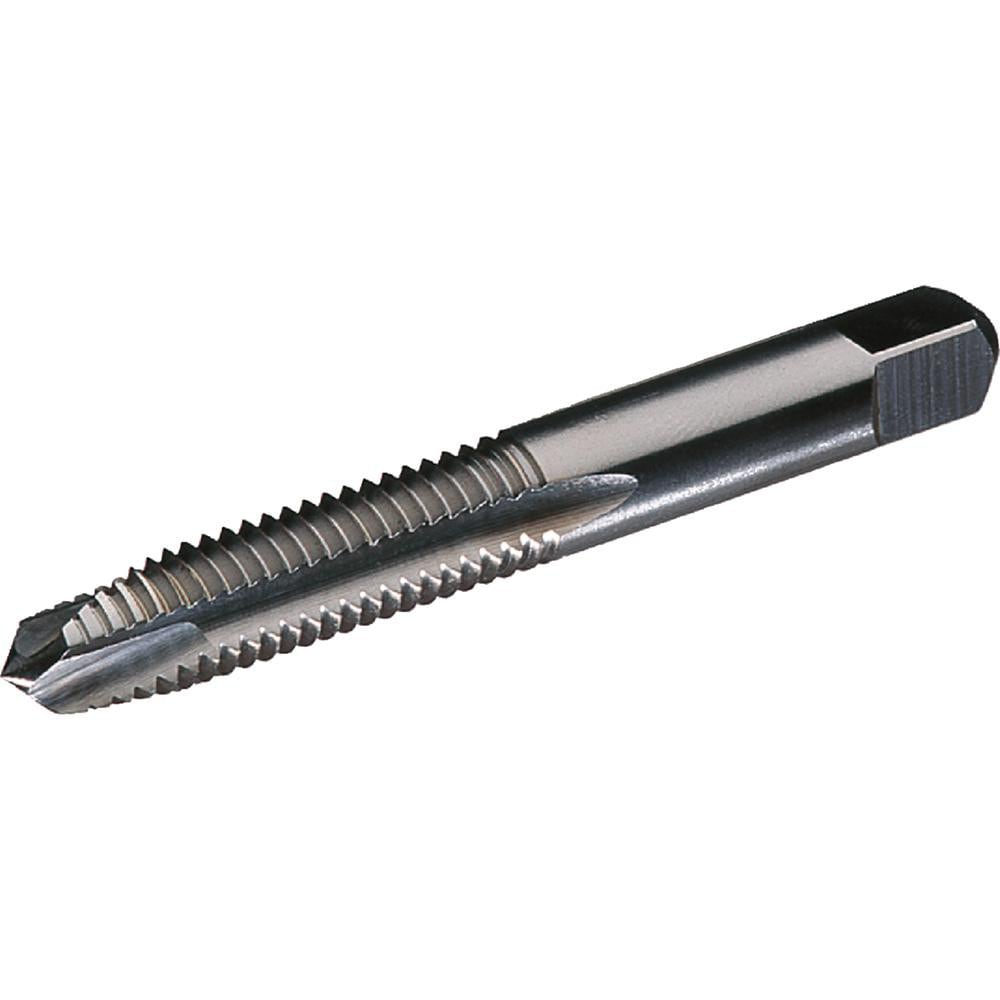

Brand: Widia / Part #: 2750313
Item #: 93320091
Brand: Widia
Model #: 2750313
Product Specifications
| Thread Size (Inch) | #4-36 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | H2 |
| Class Of Fit | H2 |
| Coating/Finish | Black Oxide |
| Threads per Inch | 36 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (Decimal Inch) | 0.5625 |
| Thread Pitch (Decimal Inch) | 0.0278 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.5625 |
| Overall Length (Decimal Inch) | 1.8750 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1100 |
| Material Application | Non-Ferrous Metal; High-Temperature Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 5301/2301 |
