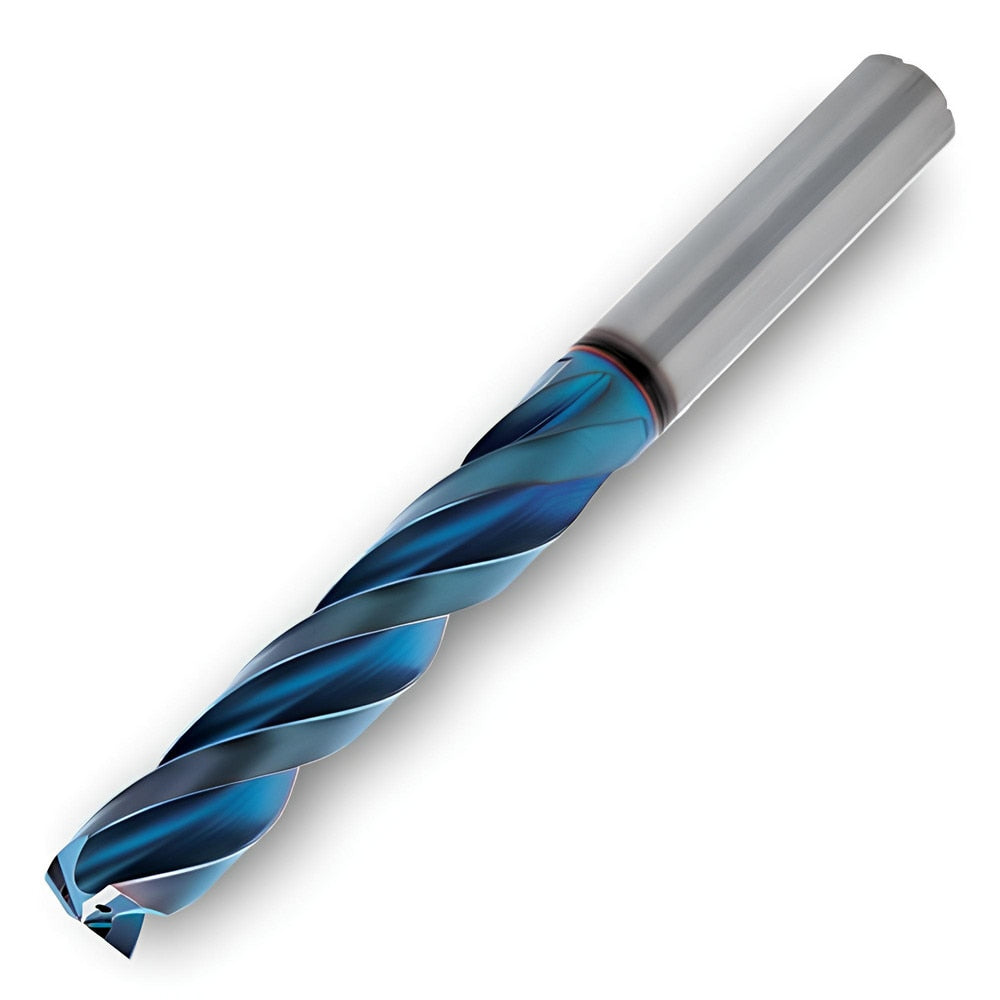

Brand: Ingersoll Cutting Tools / Part #: 6210768

Brand: Ingersoll Cutting Tools / Part #: 6210768


Item #: 94484052
Brand: Ingersoll Cutting Tools
Model #: 6210768

Product Specifications

Drill Bit Size (Inch) 1/4
Drill Bit Size (Decimal Inch) 0.2500
Drill Bit Size (mm) 6.35
Tool Material Solid Carbide
Cutting Direction Right Hand
Coating/Finish TiAlSiN; AlTiN
Drill Point Angle 140
Spiral Type Regular Spiral
Flute Type Spiral
Point Type Self Centering
Coolant Through Yes
Shank Type Cylindrical
Number Of Flutes 3
Shank Diameter (Decimal Inch) 0.3150
Overall Length (mm) 79.0000
Overall Length (Decimal Inch) 3.1102
Overall Length (Inch) 3-7/64
Shank Diameter (mm) 8.0000
Series FR
Web Thinning Web-Thinned
Drill Length Type Screw Machine Length
Maximum Drilling Depth (Decimal Inch) 0.9449
Maximum Drilling Depth (mm) 24.00
Shank Length (Decimal Inch) 1.4173
Shank Length (mm) 36.000
Drill Point Length (mm) 1.20
Drill Point Length (Decimal Inch) 0.0472
Flute By Diameter Ratio 3xD
Tool Performance High Performance
Drill Bit Diameter Tolerance m7
Flute Length (Decimal Inch) 1.3780
Flute Length (mm) 35.00
Drill Bit Grade High Performance
Material Grade IN2205
$ 141.57
