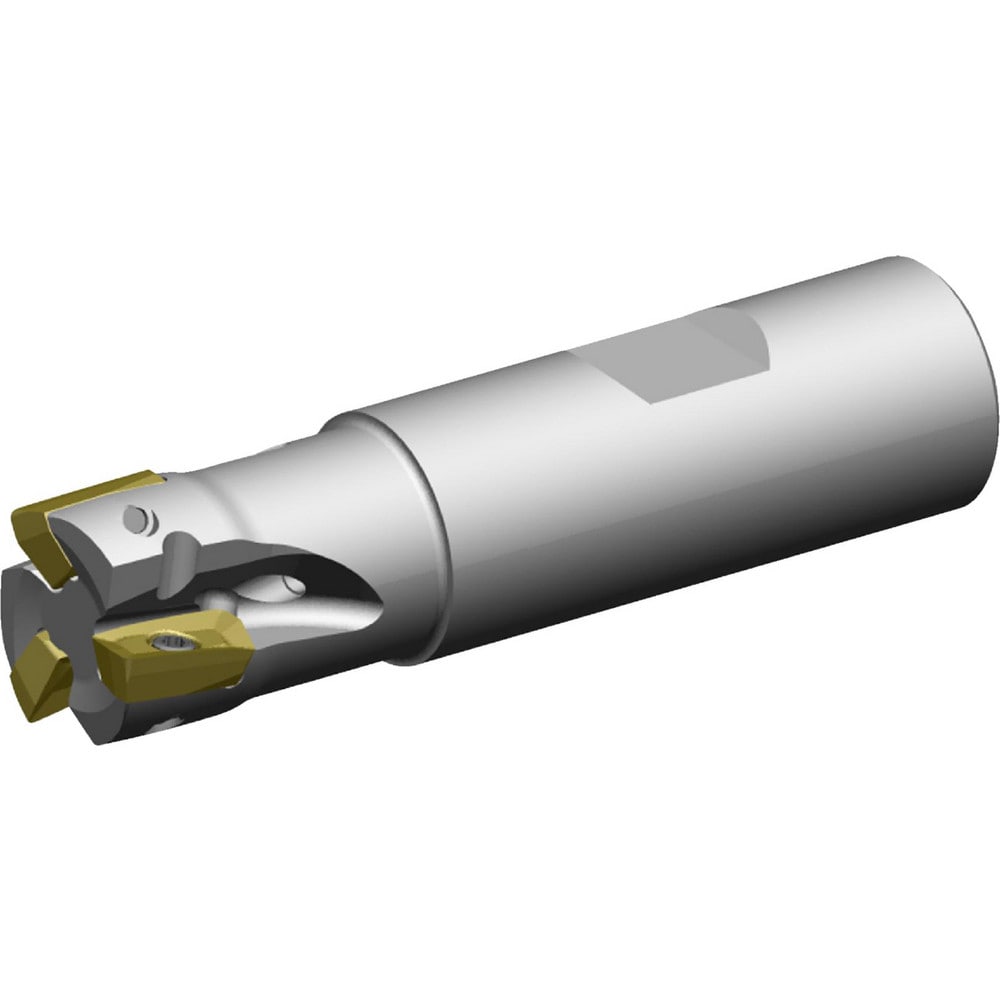

Brand: Widia / Part #: 6616470

Brand: Widia / Part #: 6616470


Item #: 98626708
Brand: Widia
Model #: 6616470

Product Specifications

Minimum Cutting Diameter (mm) 32.00
Maximum Cutting Diameter (mm) 32.00
Maximum Depth of Cut (mm) 11.44
Cutter Style VSM
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Maximum Ramping Angle 3.6 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (mm) 96.0000
Tool Material Steel
Series VSM11
Flute Type Spiral
Lead Angle 90
Shank Length (mm) 56.000
Head Length (mm) 40.00
Maximum RPM 25800.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Coolant Hole Diameter (mm) 6.00
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility XD.T11..
Insert Compatibility XD.T11..
Hand of Holder Right Hand
Rake Angle -6.57 ? (Radial);9.60 ? (Axial)
Multi-Use Tool Yes
ISO Number VSM11D032Z04B25XD11
Manufacturers Catalog Number VSM11D032Z04B25XD11
Usable Length (mm) 40.000
Number Of Flutes 4
Number Of Cutter Inserts 4
Coolant Through Yes
$ 287.77

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
