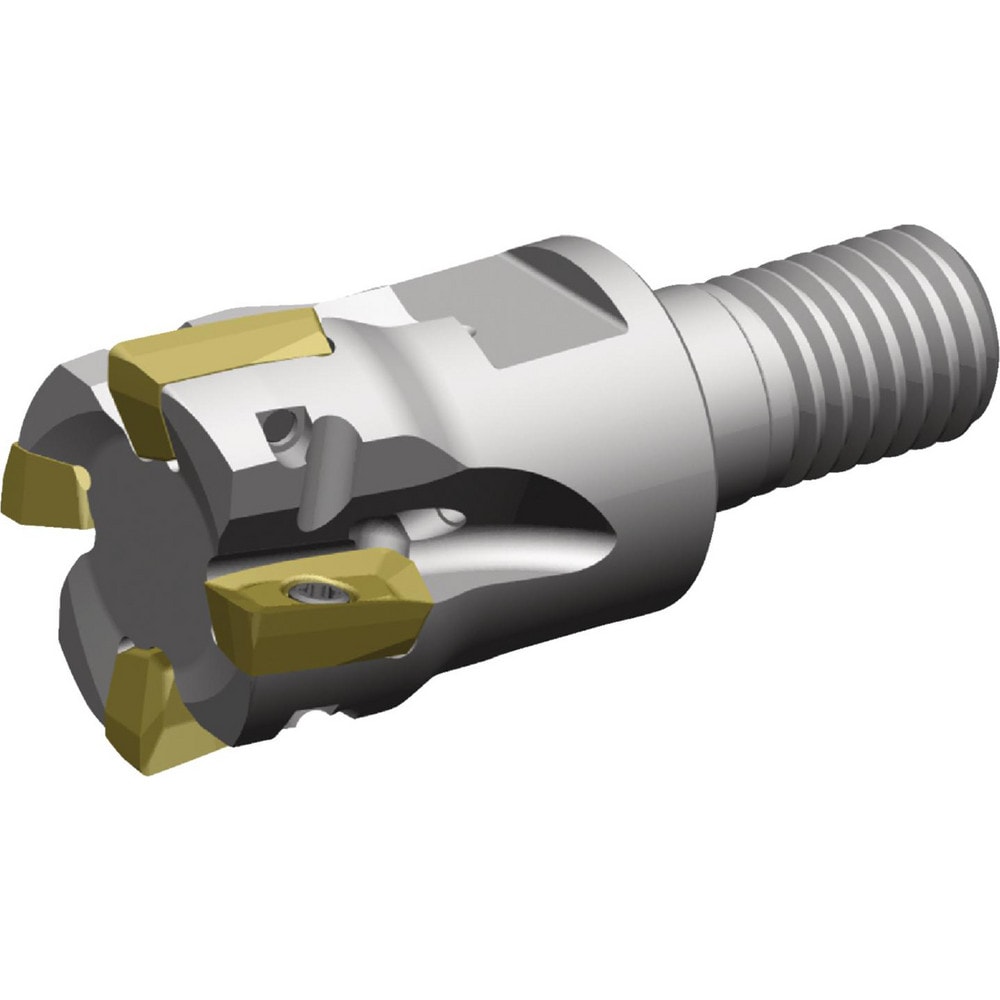

Brand: Widia / Part #: 5988017

Brand: Widia / Part #: 5988017


Item #: 98728850
Brand: Widia
Model #: 5988017

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.0000
Minimum Cutting Diameter (Inch) 1
Maximum Cutting Diameter (Decimal Inch) 1.0000
Maximum Cutting Diameter (Inch) 1
Maximum Depth of Cut (Decimal Inch) 0.6417
Cutter Style VSM
Shank Type Modular Connection
Shank Diameter (Decimal Inch) 0.8270
Maximum Ramping Angle 8.5 ?
Insert Holding Method Screw
Shank Taper Size None
Overall Length (Decimal Inch) 1.2500
Tool Material Steel
Series VSM17
Flute Type Spiral
Lead Angle 90
Shank Length (Decimal Inch) 0.8660
Head Length (Inch) 1-1/4
Head Length (Decimal Inch) 1.2500
Modular Connection Size M12
Maximum RPM 41300.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Universal
End Mill Type Shoulder Square End Mill
Coolant Hole Diameter (Decimal Inch) 0.1570
Rake Negative (Radial); Positive (Axial)
Complete Insert Compatibility XD.T17..
Insert Compatibility XD.T17..
Hand of Holder Right Hand
Rake Angle -9.10 ? (Radial);7.00 ? (Axial)
Multi-Use Tool Yes
ISO Number VSM17D100Z02M12XD17
Manufacturers Catalog Number VSM17D100Z02M12XD17
Number Of Flutes 2
Usable Length (Decimal Inch) 1.2500
Number Of Cutter Inserts 2
Coolant Through Yes
$ 286.18
