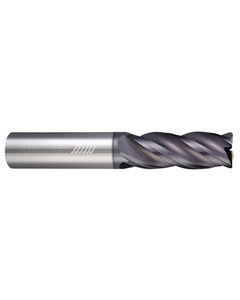

HSV-M-41000-R.060 APLUS COATED
Item #: HS1043737
Brand: Helical Solutions
Model #: 43737
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Corner Radius (RE) | 0.06″ |
| Depth of Cut Maximum (APMX) | 2-5/8″ |
| Length Group | 2.5D |
| Overall Length (OAL) | 5″ |
| Decimal Equivalent | 1″ |
| Coating | APLUS |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Shank Length (LS) | 2.375″ |
