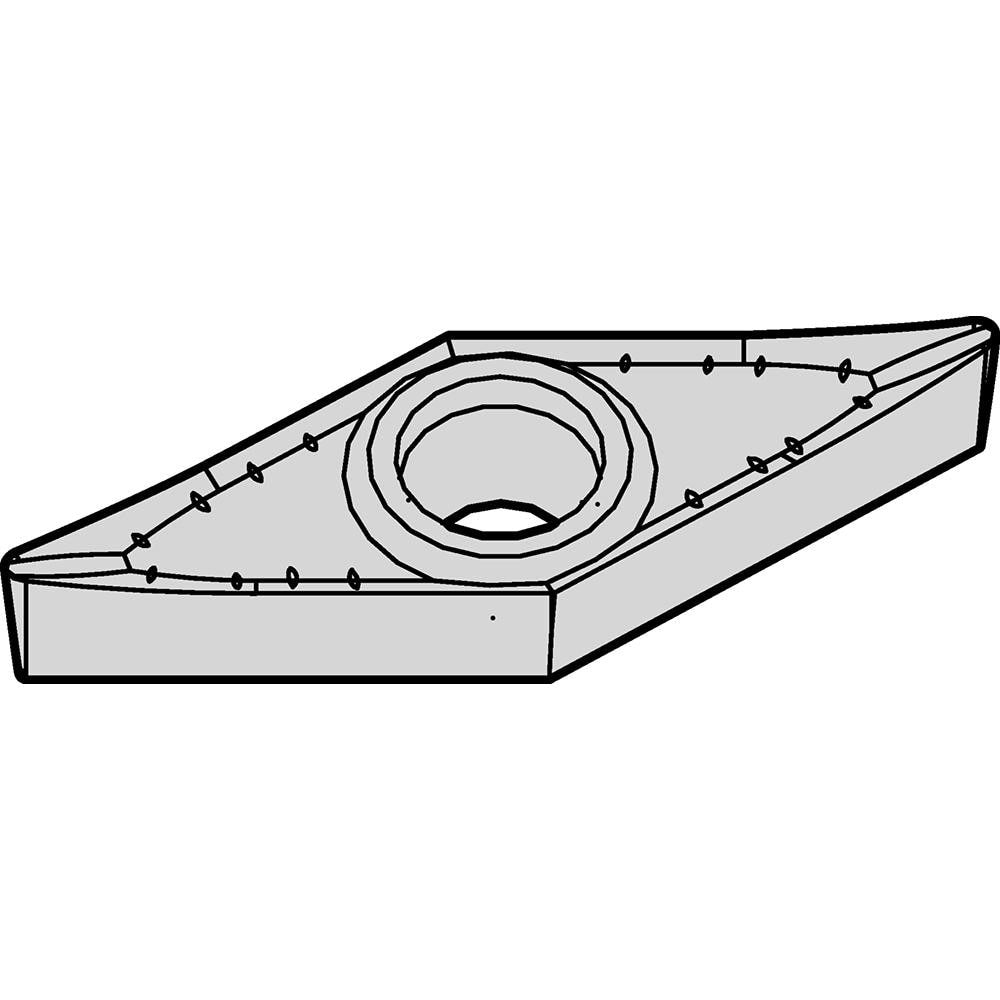

Brand: Widia / Part #: 2022487
Item #: 95267522
Brand: Widia
Model #: 2022487
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Coating/Finish | TiAlN; Al2O3 |
| Manufacturer Grade | HCK10 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3269 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Clearance Code | C |
| Tolerance Code | G |
| Included Angle | 35.00 |
| Relief Angle | 7.000 |
| Series | VCGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6538 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | VCGT332AL3 |
| Iso Code | VCGT160408AL3 |
| Manufacturers Catalog Number | VCGT332AL3 |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | AL3 |
| Style | VCGT |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
