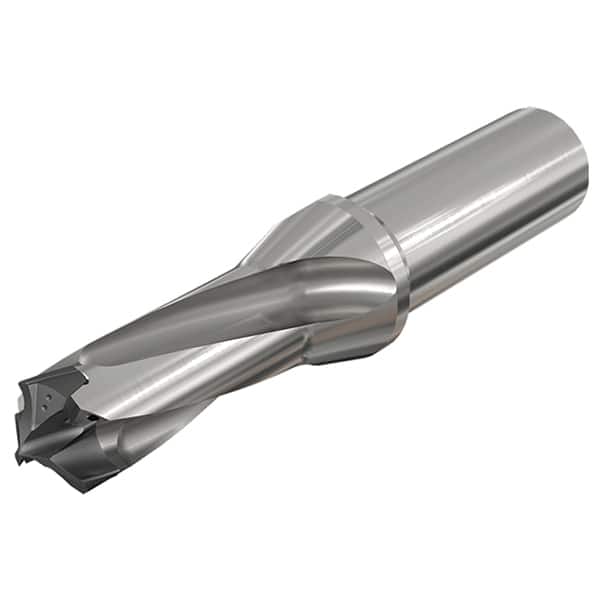

Iscar - Replaceable-Tip Drills Series: LogIQ3Cham Minimum Drill Diameter (mm): 16.00
Item #: 15111420
Brand: Iscar
Model #: 3363001
Product Specifications
Replaceable-Tip Drills; Series: LogIQ3Cham ; Minimum Drill Diameter (mm): 16.00 ; Minimum Drill Diameter (Decimal Inch): 0.6299 ; Maximum Drill Diameter (mm): 16.90 ; Maximum Drill Diameter (Decimal Inch): 0.6654 ; Drill Depth by Diameter Ratio: 1.5xD
| Series | LogIQ3Cham |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6654 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.2598 |
| Maximum Drill Depth (mm) | 32.00 |
| Shank Diameter (mm) | 20.0000 |
| Insert Style | H3P |
| Insert Seat Size | 16 |
| Toolholder Style | D3N |
| Through Coolant | Yes |
| Shank Type | Cylindrical |
| Tip Length (mm) | 3.46 |
| Tip Length (Decimal Inch) | 0.1362 |
| Body Length (mm) | 57.300 |
| Body Length (Decimal Inch) | 2.2559 |
| Overall Length (mm) | 107.3000 |
| Overall Length (Decimal Inch) | 4.22440 |
| Toolholder Material | Steel (Shank) |
| Shank Length (mm) | 50.000 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Type | Cylindrical |
| Overall Length (mm) | 107.3000 |
| Number of Flutes | 3 |
| Cutting Direction | Right Hand |
