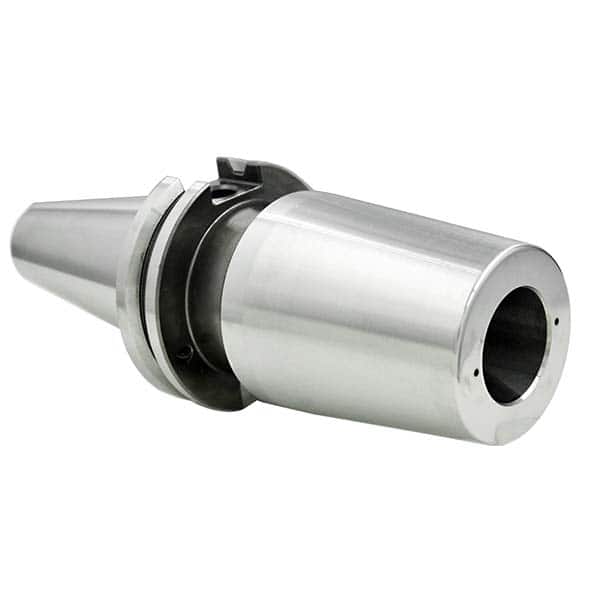

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: CAT40
Item #: 10340008
Brand: Parlec
Model #: C40A-10SF394-9C
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: CAT40 ; Hole Diameter (Inch): 1 ; Projection (Decimal Inch): 3.9400 ; Nose Diameter (Decimal Inch): 1.7300 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1 |
| Projection (Decimal Inch) | 3.9400 |
| Nose Diameter (Decimal Inch) | 1.7300 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.2800 |
| Overall Length (Decimal Inch) | 6.63000 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.0020 |
