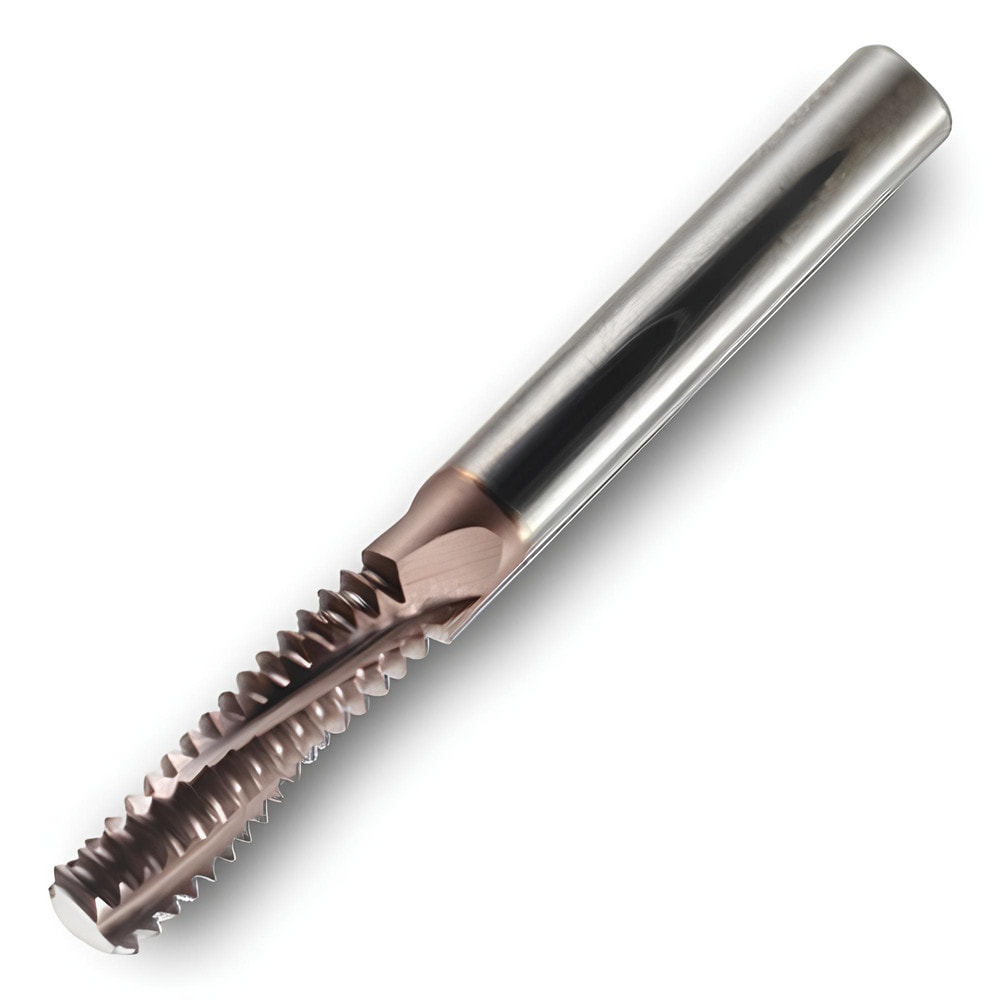

Brand: Ingersoll Cutting Tools / Part #: 5603927
Item #: 55667620
Brand: Ingersoll Cutting Tools
Model #: 5603927
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/8 |
| Thread Depth | 1.1400 |
| Thread Depth (Decimal Inch) | 1.1400 |
| Thread Type | UN |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Minimum Nominal Diameter (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 1.8600 |
| Overall Length (Decimal Inch) | 3.0000 |
| Thread Standard | UN |
| Thread Mill Type | Mini |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTEC-UN |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1400 |
| Thread Length (Decimal Inch) | 1.1400 |
| Teeth Per Inch | 11 |
