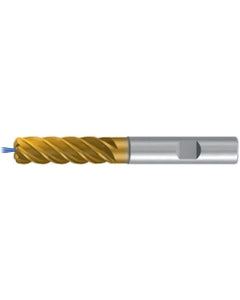

Square End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; TiAlN+TiN ; 0.01″ R ; Series 3911TZ
Item #: ER45911TZ025010
Brand: EMUGE-FRANKEN
Model #: 3911TZ.025010
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide |
| Series/List # | 3911TZ |
| Coating | TiAlN+TiN |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
| Flute Count (NOF) | 4 |
