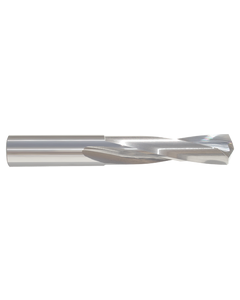

7 CARB STUB DRILL
Item #: MW23460302010
Brand: Monster Tool Company
Model #: 460-302010
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #7 |
| Cutting Edge Material | Solid Tungsten Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #7 |
| Tool Type | Drill |
| Length Group | Short/Stub |
| Grade | C-2 Sub-Micron |
| Coating | Bright |
| Point Shape | Drill Point |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Measurement Type | Wire Gauge |
| Application | | Drilling | |
| Series/List # | 460 |
| Connection Diameter Machine Side (DCONMS) | 0.201″ |
| Length Chip Flute (LCF) | 1-3/16″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/4″ |
| Point Angle (SIG) | 135 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 1-3/16″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Single / Double End | Single End |
