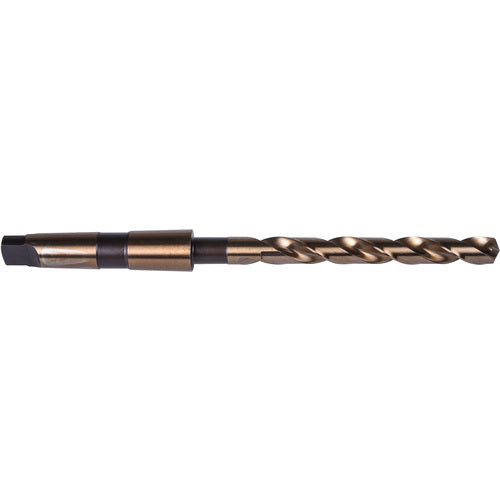

49/64 Cobalt Taper Shank Drill Series 209CO E-code # 209CO49/64
Item #: PT11021349
Brand: Precision Twist Drill
Model #: 6000838
| Product Specifications | |
|---|---|
| Measurement Type | Inch |
| Cutting Edge Material | HSSCo |
| Drill Bit Size / Cutting Diameter (DC) | 49/64″ |
| Flute Length | 6″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 49/64″ |
| Helix Angle | CW |
| Decimal Equivalent | 0.7656 |
| Length Group | 4xD |
| Shank Size (SS) | 49/64″ |
| Overall Length (OAL) | 10-5/8″ |
| Angle | 135 Degrees |
| Shank Type | 2MT |
| Applicable Material | Aluminum | Cast Iron | Copper | Exotic Alloys | Hard Materials | Hardened Steel | Plastics | Stainless Steel | Steel | Titanium |
| Standard | ANSI |
| Coating | Bronze Oxide |
| Tool Type | Taper Shank |
| Coolant Supply Property (CSP) | External |
| Series/List # | 209CO |
| Cutting Depth | 6″ |
