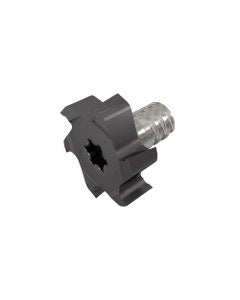

MM TS1.00-H375D-06T10 IC908
Item #: EH563401437
Brand: Iscar
Model #: 3401437
| Product Specifications | |
|---|---|
| Application | | Internal Groove Milling | Side Slotting | T Slotting | |
| Grade | IC908 |
| Cutting Diameter (DC) | 1″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 0.177″ |
| Body Material | Carbide |
| Cutting Width (CW) | 3/8″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 12.28″ |
