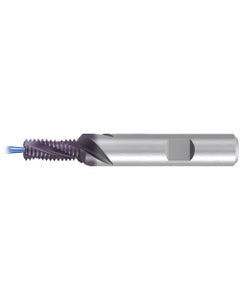

G 3/8-19 / GSF Style - Spiral Flute - TICN Thread Mill
Item #: ER4516894
Brand: EMUGE-FRANKEN
Model #: GF322106.4037
| Product Specifications | |
|---|---|
| Thread Size | 3/8″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Threads per Inch (TPI) | 19 |
| Shank Type | HB |
| Thread Diameter Size (TDZ) | 3/8″ |
| Coating | TiCN |
| Thread Standard | BSP |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Usable Length (LU) | 26.1 mm |
| Overall Length (OAL) | 102 mm |
| Series/List # | A223344 |
| Flute Count (NOF) | 4 |
