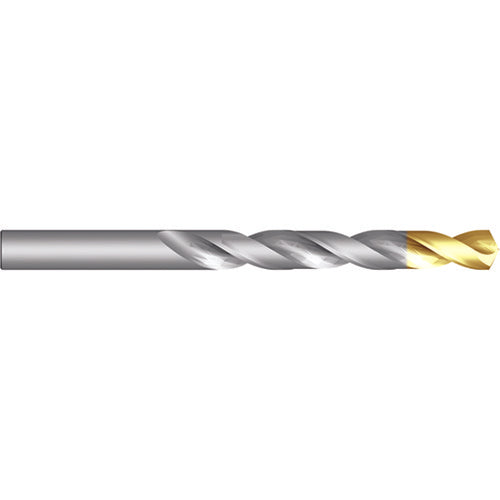

O HSS Drill - 4xD - ANSI - Bright/TiN - 118 Degree Split Point E-code # A012O
Item #: PT450571767
Brand: Dormer
Model #: 5966774
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | O |
| Flute Length | 3-3/16″ |
| Decimal Equivalent | 0.3160 |
| Helix Angle | CW |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | O |
| Point Shape | Split Point |
| Measurement Type | Letter |
| Shank Type | Round |
| Angle | 118 Degrees |
| Standard | ANSI |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.3161″ |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium |
| L Group | 4xD |
| Coating | Bright | TiN |
| Tool Type | Drill |
| Coolant Supply Property (CSP) | External |
| Series/List # | A012 |
| Cutting Depth | 3-3/16″ |
| Overall Length (OAL) | 4-1/2″ |
