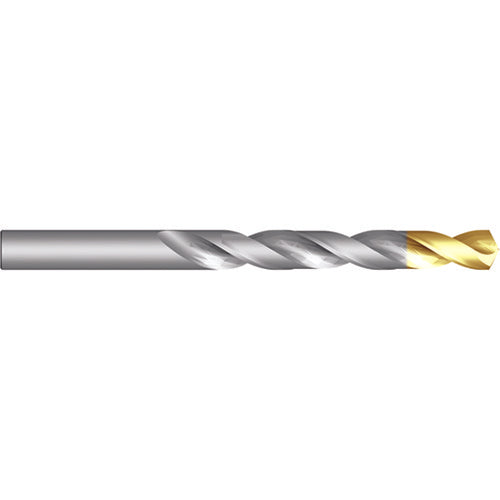

1/2″ HSS Drill - 4xD - ANSI - Bright/TiN - 118 Degree Split Point E-code # A0121/2
Item #: PT450571880
Brand: Dormer
Model #: 5966617
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 1/2″ |
| Flute Length | 4-1/2″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/2″ |
| Helix Angle | CW |
| Decimal Equivalent | 0.5000 |
| Point Shape | Split Point |
| Measurement Type | Inch |
| Shank Type | Round |
| Angle | 118 Degrees |
| Standard | ANSI |
| Cutting Edge Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 0.5″ |
| Applicable Material | Aluminum|Cast Iron|Copper|Exotic Alloys|Hard Materials|Hardened Steel|Plastics|Stainless Steel|Steel|Titanium |
| L Group | 4xD |
| Coating | Bright | TiN |
| Tool Type | Drill |
| Coolant Supply Property (CSP) | External |
| Series/List # | A012 |
| Cutting Depth | 4-1/2″ |
| Overall Length (OAL) | 6″ |
