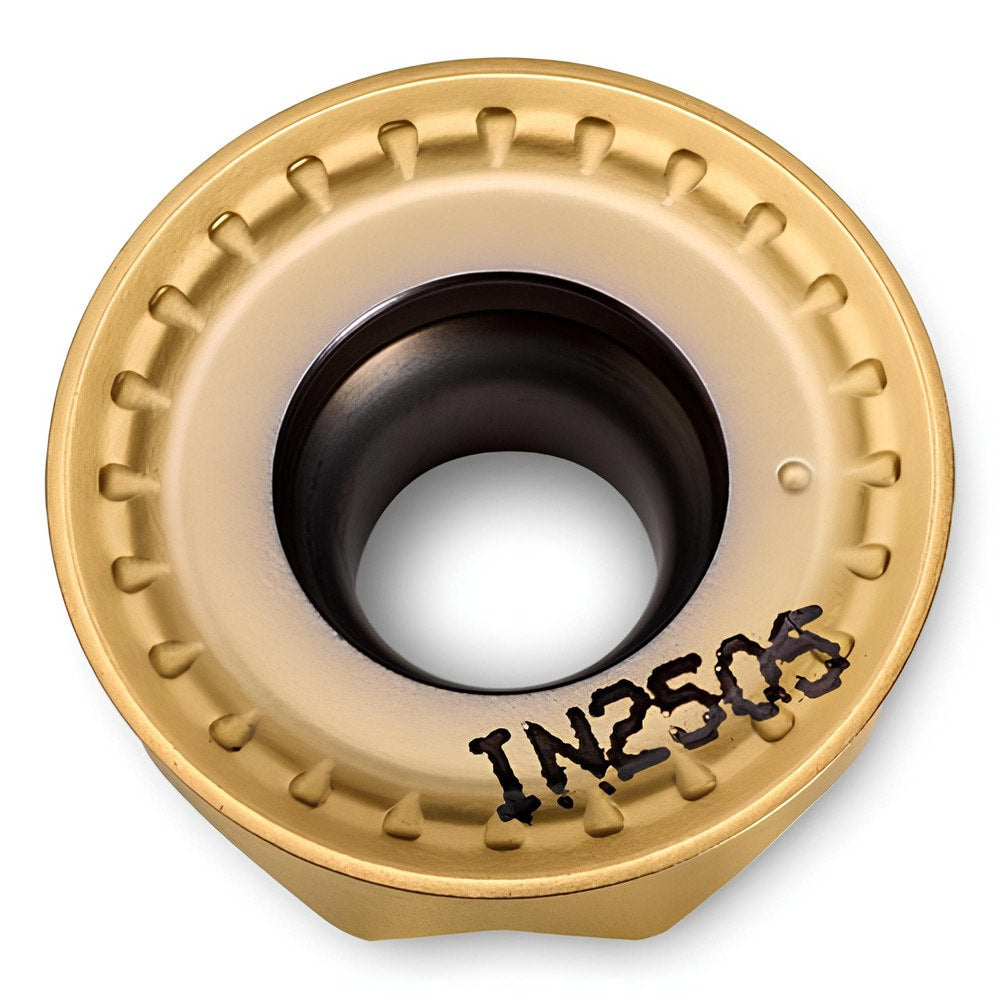

Brand: Ingersoll Cutting Tools / Part #: 5614204
Item #: 67316554
Brand: Ingersoll Cutting Tools
Model #: 5614204
Product Specifications
| Insert Style | RJLT |
| Insert Size Code | 1605 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2540 |
| Inscribed Circle (mm) | 16.00 |
| Corner Radius (mm) | 8.00 |
| Insert Hand | Neutral |
| Series | RJLT |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 8.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | RJLT1605MOTN |
| Manufacturers Catalog Number | RJLT1605MOTN IN2540 |
| Cutter Series Compatibility | 1A7K |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 8.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Length | 16.00 |
| Width (Mm - 2 Decimals) | 16.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2400 |
| Multi-Use Tool | No |
