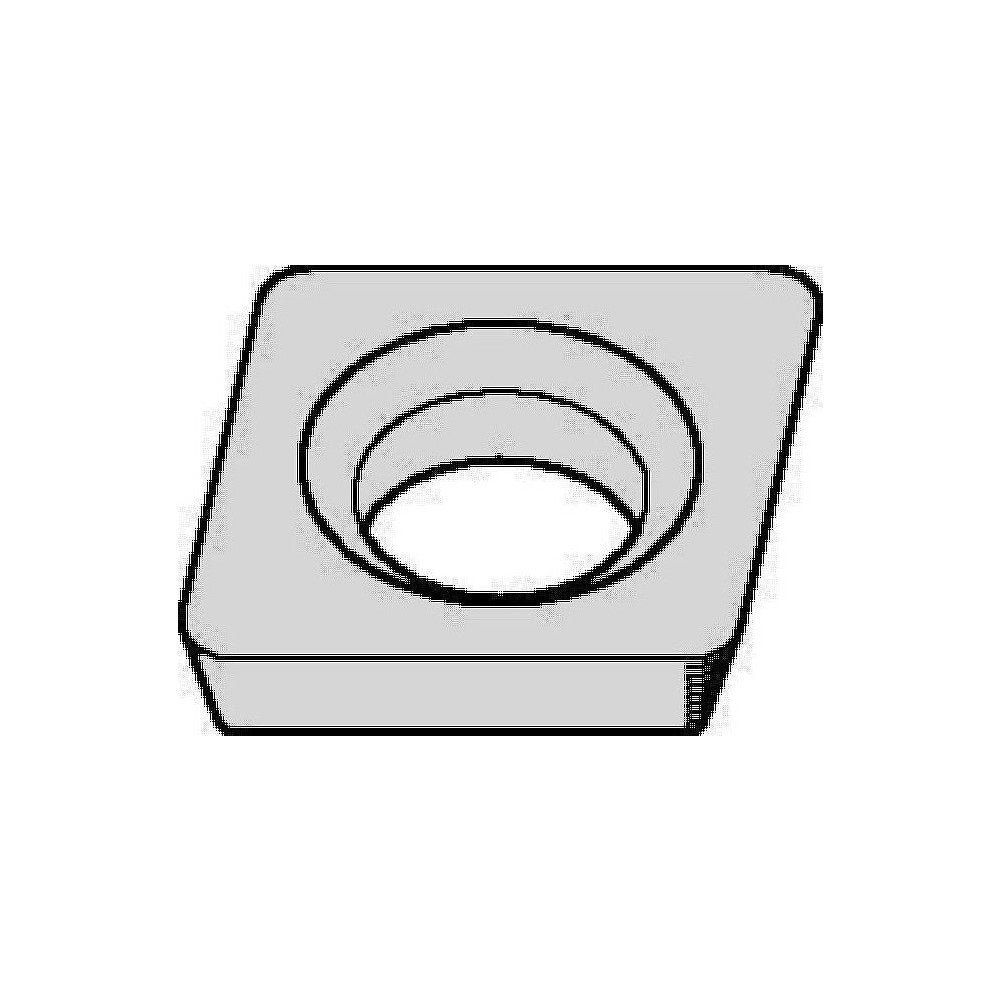

Brand: Widia / Part #: 3884731
Item #: 59872788
Brand: Widia
Model #: 3884731
Product Specifications
| Insert Style | CDCD |
| Insert Size Code | 1206X0 |
| Insert Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer Grade | CG5 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Hole Diameter (Decimal Inch) | 0.0840 |
| Maximum Depth of Cut (Decimal Inch) | 0.1047 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0020 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Chipbreaker | Yes |
| Series | CDHB |
| Coating Process | PVD |
| Included Angle | 80.00 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CDHB1206X0 |
| Iso Code | CDHBS4T0X0 |
| Standards | ISO; ANSI |
| Cutting Direction | Neutral |
| Shape | Diamond |
| Manufacturers Catalog Number | CDHBS4T0X0 |
| Single or Multi Tipped | Multi Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.1587 |
| Lead Angle | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.1587 |
| Coating/Finish | TiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.0400 |
