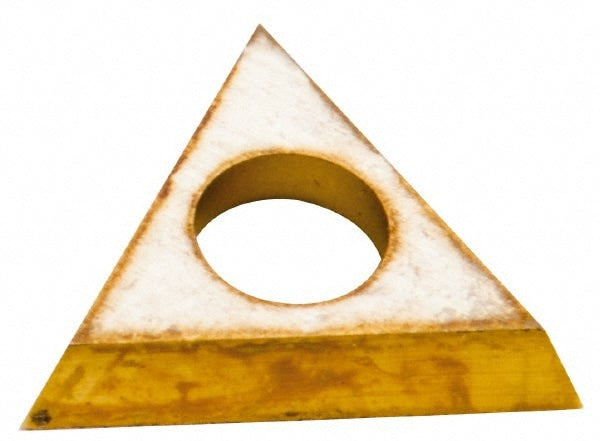

Brand: Widia / Part #: 2828697
Item #: 70731278
Brand: Widia
Model #: 2828697
Product Specifications
| Insert Style | TPHB |
| Insert Size Code | 13081 |
| Insert Material | Carbide |
| Material Grade | C2 |
| Thickness (Inch) | 3/64 |
| Manufacturer Grade | C25 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Maximum Depth of Cut (Decimal Inch) | 0.1828 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0150 |
| Relief Angle | 15.000 |
| Rake | Positive |
| Chipbreaker | None |
| Series | TDHB |
| Coating Process | Uncoated |
| Included Angle | 60.00 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | TDHB13081 |
| Iso Code | TDHB07S104 |
| Standards | ISO; ANSI |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Manufacturers Catalog Number | TDHB07S104 |
| Single or Multi Tipped | Multi Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.2770 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.2770 |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0469 |
