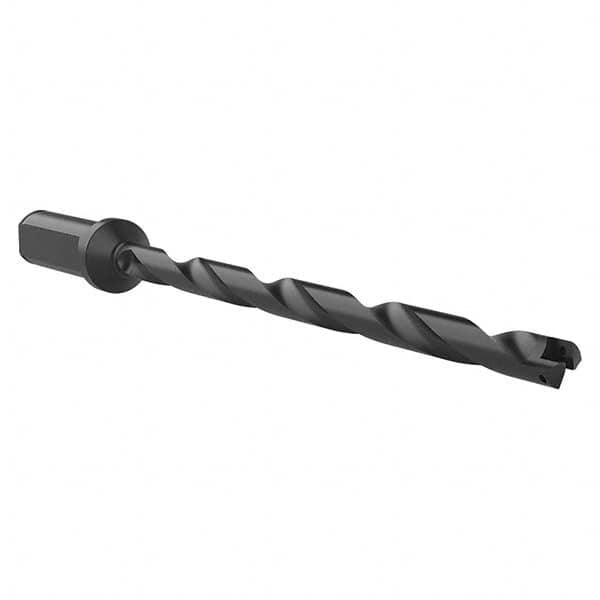

Allied Machine and Engineering - 7/16" to 1/2" Diam 7-1/16" Max Depth Helical Flute Spade Drill
Item #: 12329355
Brand: Allied Machine and Engineering
Model #: 260Z0H-075F
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | Z |
| Minimum Drill Diameter (Inch) | 7/16 |
| Maximum Drill Diameter (Inch) | 1/2 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Long Length |
| Overall Length (Inch) | 10-3/8 |
| Maximum Drill Depth (Inch) | 7-1/16 |
| Flute Type | Helical Flute |
| Body Length (Inch) | 8-1/4 |
| Shank Length (Inch) | 2-1/32 |
| Series Code/Seat Size | Z |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
