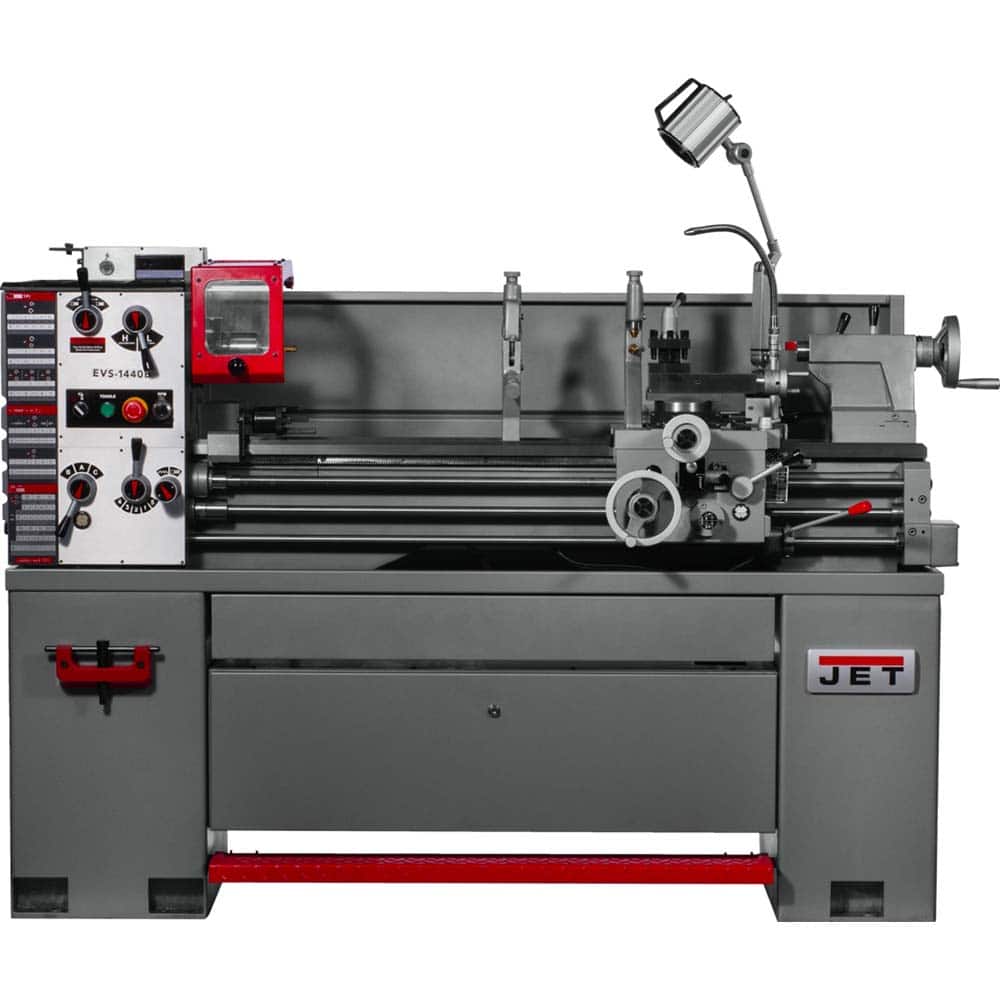

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Electronic Variable Speed - Exact Tooling

Jet - Bench, Engine & Toolroom Lathes Machine Type: Bench Lathe Spindle Speed Control: Electronic Variable Speed


Item #: 14767115
Brand: Jet
Model #: 311448

Features and Benefits

Bench lathes are used for light- to medium-duty work and are mounted onto a workbench or stand. They are capable of machining larger work than hobby lathes with swings of 9" to 13".
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.

Product Specifications

Bench, Engine & Toolroom Lathes; Machine Type: Bench Lathe ; Spindle Speed Control: Electronic Variable Speed ; Phase: 3 ; Voltage: 230/460V ; Horsepower (HP): 3 ; Distance Between Centers (Inch): 40
Machine Type Bench Lathe
Spindle Speed Control Electronic Variable Speed
Phase 3
Voltage 230/460V
Horsepower (HP) 3
Distance Between Centers (Inch) 40
Spindle Bore Diameter (Inch) 1-1/2
Spindle Taper Size (No Sleeve) 3MT
Spindle Taper Size 3 MT
Spindle Taper Size (Sleeve) 5MT
Swing Over Gap (Inch) 19-1/2
Swing Over Cross Slide (Inch) 9-1/16
Gap Length (Decimal Inch) 9.5000
Bed Width (Inch) 7.48
Number of Spindle Speeds Variable
Minimum Spindle Speed (RPM) 40
Maximum Spindle Speed (RPM) 2000
Number of Inch Threads 34
Maximum Threads Per Inch 12
Min. Longitudinal Feed Per Rev. (Decimal Inch) 0.0016
Max. Longitudinal Feed Per Rev. (Decimal Inch) 0.0460
Minimum Threads Per Inch 2
Cross Slide Travel (Inch) 7
Tailstock Travel (Decimal Inch) 6.1250
Overall Length (Decimal Inch) 68.50000
Overall Height (Inch) 50
Overall Depth (Inch) 28.3
Compound Travel (Inch) 3-1/2
$ 17,086.41

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
