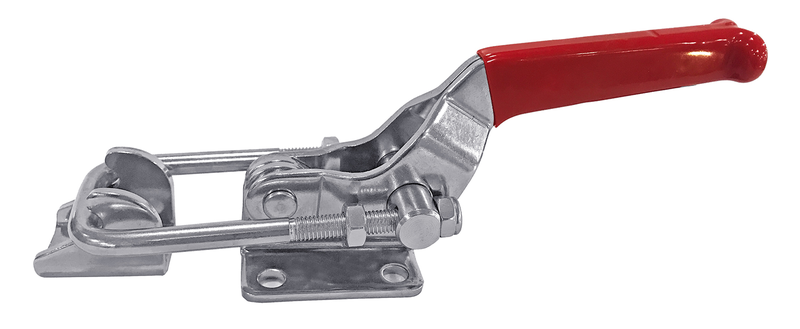

2000 lbs U-Hook Flanged Base Latch Clamp Stainless Steel

Item #: RH10R131
Manufacturer: Rapidhold
Mfg #: :

Technical Specifications:
*Bar Style: U-Hook *Base Length: 2.38 *Base Type: Flanged *Base Width: 2.13 *Brand Name: Rapidhold *Distance From Base to Clamp Bar: 1.17 *Distance From Surface to Clamp Point: .91 *Height Under Clamp Arm: 0.91 *Holding Capacity: 2000 lbs *Hook Diameter: .31 *Latch Plate Length: 1.50 *Latch Plate Overall Length: 1.50 *Latch Plate Width: 1.19 *Maximum Distance: 5.37 *Minimum Distance: 3.53 *Model No.: R131 *Mount Diameter: .34 *Mounting Length: 1.63 *Mounting Width: 1.5 *Overall Height: 2.92 *Overall Length: 6.64 *Plunger Diameter: 1.75 *Spindle Size: 5/16-18*4.52 *Style: Latch Type Toggle Clamp *Weight: 1.5 lbs

Description:
*Fixed hook *Latch plate not included

Shipping Info:
*Actual Weight - 1.4300
