AL3-304-20-190-TC 0.625-I
Item #: RJ4012810
Brand: Robb Jack
Model #: AL3-304-20-190-TC
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Corner Radius (RE) | 0.19″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ |

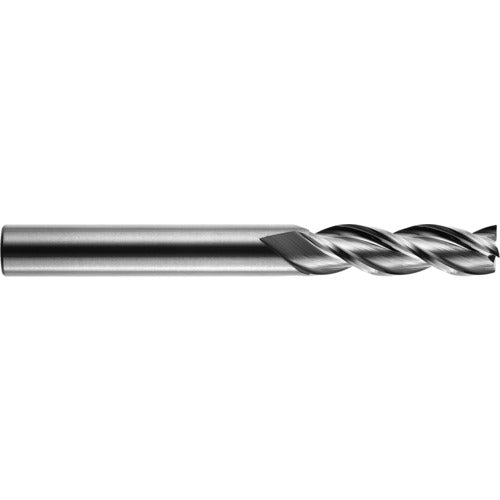

| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4-1/2″ |
| Decimal Equivalent | 0.625″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | AL3-304 |
