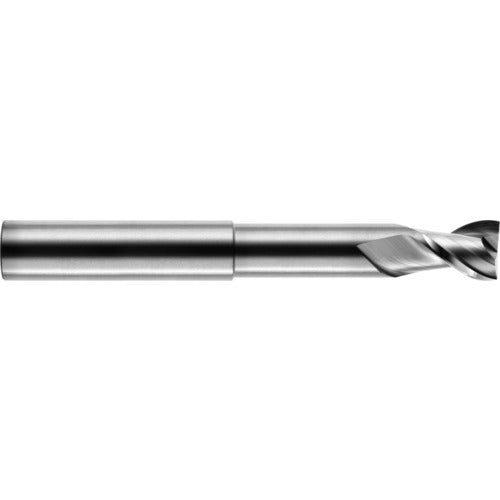

MFM-303-20-200 20MM DIA 3
Item #: RJ40MFM30320200
Brand: Robb Jack
Model #: MFM-303-20-200
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Usable Length (LU) | 80 mm |
| Depth of Cut Maximum (APMX) | 21 mm |
| Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 150 mm |
| Tool Type | Solid Carbide Endmill |
| Coating | Uncoated |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Series/List # | MFM-303 |
| Flute Helix Angle (FHA) | 40 Degrees |
