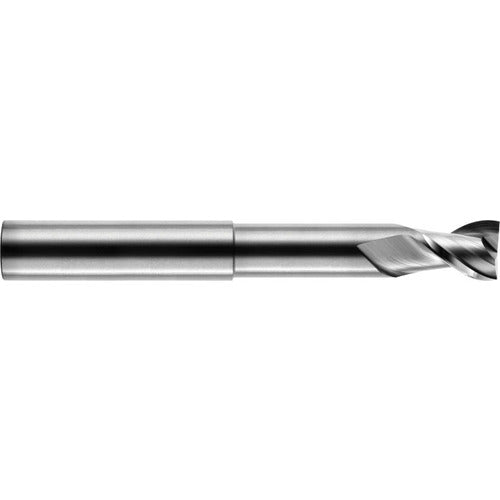

FMHV-201-32-090-TC-CB 1-I
Item #: RJ4120820
Brand: Robb Jack
Model #: FMHV-201-32-090-TC-CB
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Usable Length (LU) | 2-1/8″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Radius (RE) | 0.09″ |
| Overall Length (OAL) | 4″ |
| Tool Type | Solid Carbide Endmill |
| Coating | Uncoated |
| Decimal Equivalent | 1″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | FMHV-201 |
