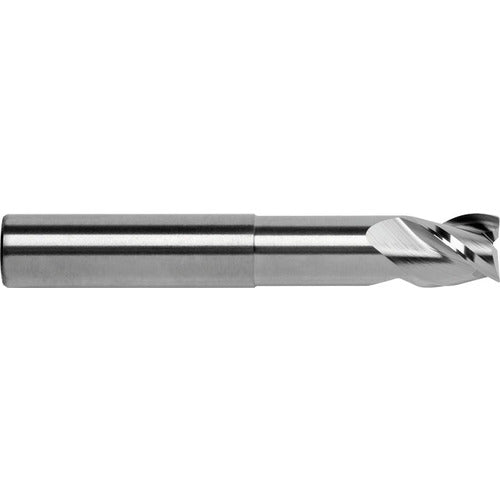

FMHV-302-08-030-CB 0.25-I
Item #: RJ4132560
Brand: Robb Jack
Model #: FMHV-302-08-030-CB
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 1-1/16″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 2-1/2″ |
| Tool Type | Solid Carbide Endmill |
| Coating | Uncoated |
| Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | FMHV-302 |
