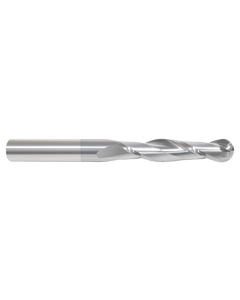

1/4-2FL-SE-LG BN 1-1/8x3 TiCN
Item #: MW21224001022
Brand: Monster Tool Company
Model #: 224-001022
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Application | | Profiling | Plunging | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Grade | C-2 Sub-Micron |
| Depth of Cut Maximum (APMX) | 1-1/8″ |
| Length Group | Long |
| Overall Length (OAL) | 3″ |
| End Shape | Ballnose |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | TiCN |
| Series/List # | 224 |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees |
| Center Cutting | Yes |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Single / Double End | Single End |
