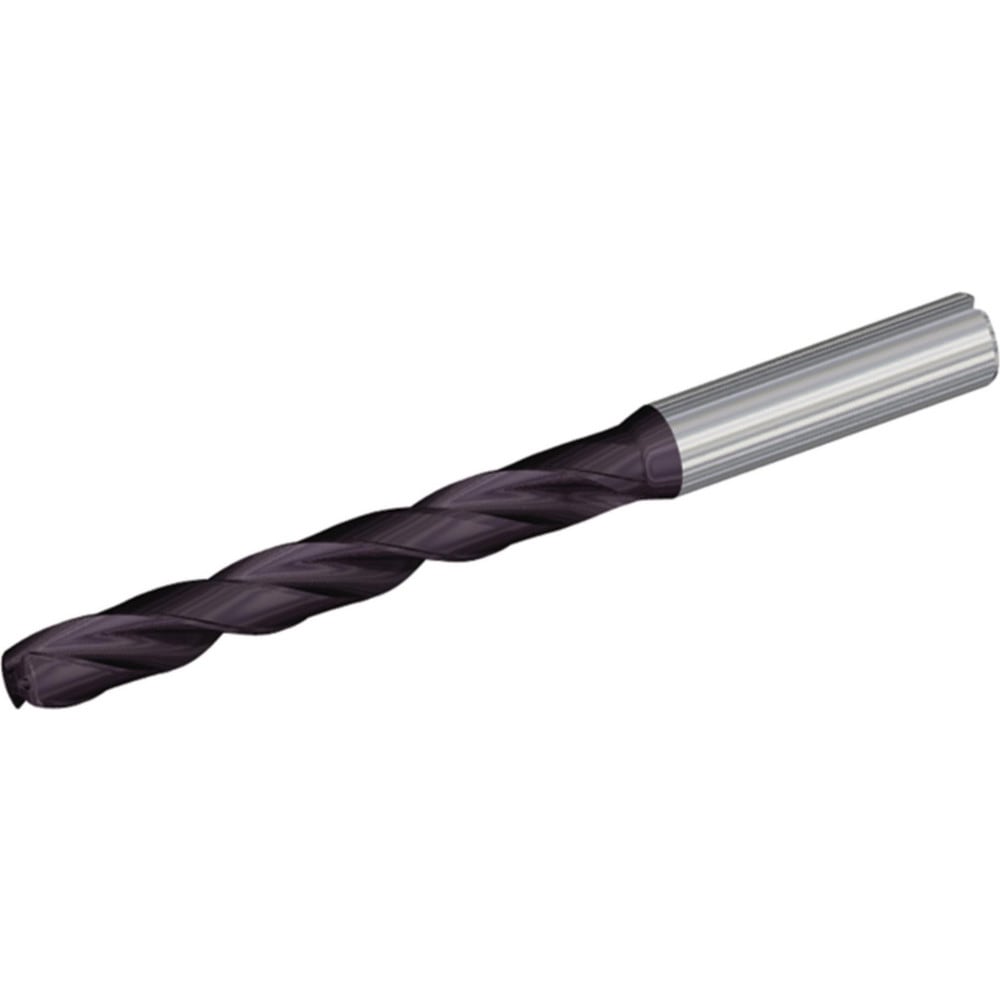

Brand: Widia / Part #: 4173509

Brand: Widia / Part #: 4173509


Item #: 03502051
Brand: Widia
Model #: 4173509

Product Specifications

Drill Bit Size (mm) 10.20
Overall Length (mm) 218.0000
Flute Length (mm) 164.00
Tool Material Carbide
Coating/Finish TiAlN
Drill Point Angle 132
Shank Type Cylindrical
Coolant Through Yes
Flute Type Spiral
Series TDS504A
Point Type Cone Relief
Cutting Direction Right Hand
Tool Application Deep Hole Drilling
Spiral Type Regular
Drill Bit Diameter Tolerance 0.000300 to 0.001000 in
Number Of Flutes 2
Primary Workpiece Material Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; K; M
Drill Bit Grade WU20PD
Drill Point Length (mm) 2.18
Shank Diameter (mm) 12.0000
Shank Length (mm) 45.000
Flute By Diameter Ratio 14xD
Maximum Drilling Depth (mm) 140.00
$ 407.00
