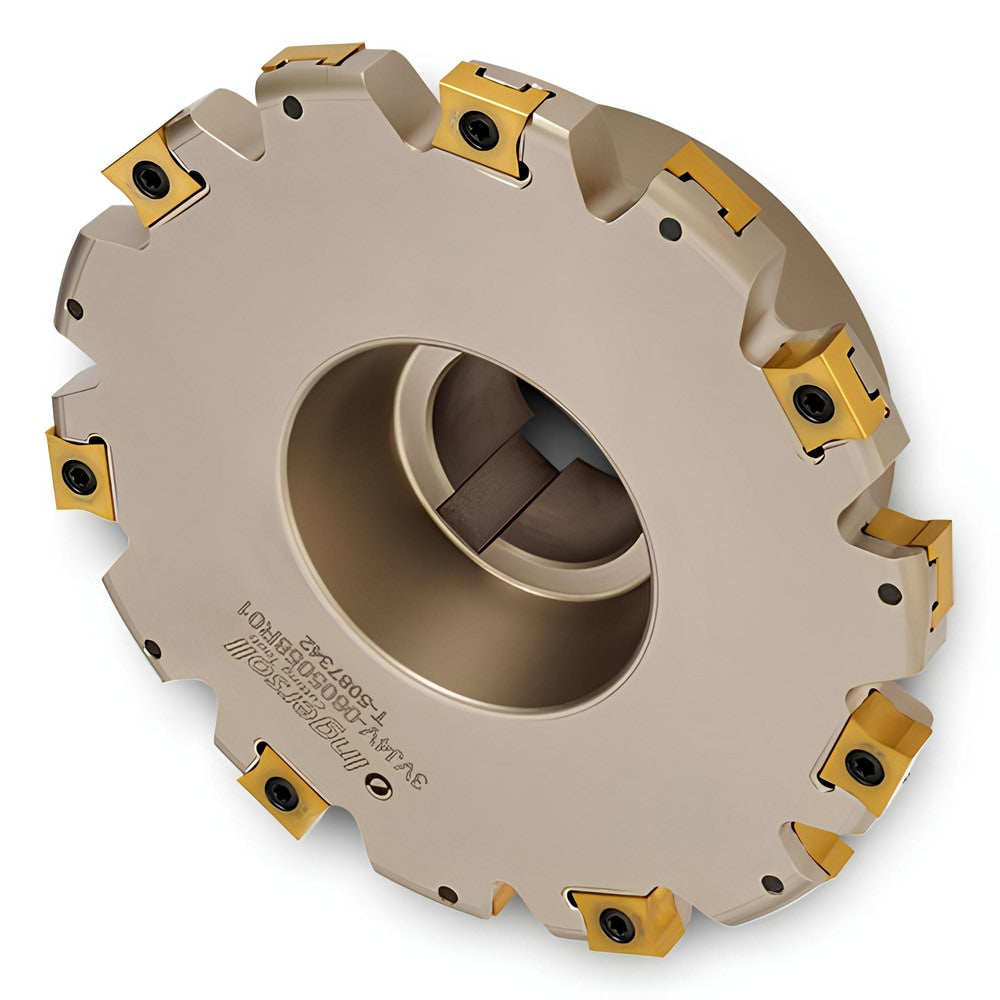

Brand: Ingersoll Cutting Tools / Part #: 2913931
Item #: 38221891
Brand: Ingersoll Cutting Tools
Model #: 2913931
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (Inch) | 5/16 |
| Maximum Depth of Cut (Decimal Inch) | 1.0400 |
| Hole Diameter (Inch) | 1 |
| Cutter Diameter (Inch) | 4 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Length (Decimal Inch) | 1.1875 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | IHX |
| Compatible Insert Size Code | 413 |
| Staggered Tooth | Yes |
| Tooth Type | Staggered Tooth |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Hub Diameter (Inch) | 1-3/4 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Cutter Body Width (Decimal Inch) | 0.3120 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-04031D3R01 |
| Overall Length (Inch) | 1-1/2 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | INX413.. |
| Coating/Finish | Coated |
