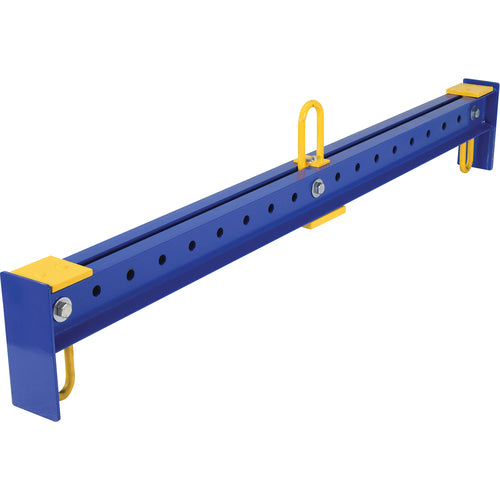

Adjustable Spreader Beam 2500 lb 78″
Item #: RV54SBM25
Brand: Vestil
Model #: SBM-25
| Product Specifications | |
|---|---|
| Type | Spreader Beam |
| Usable Upper Bail Length | 5″ |
| Load Capacity | 2500 lbs |
| Usable Upper Bail Width | 2-1/2″ |
| Maximum Spread | 72″ |
| Overall Length | 78″ |
| Minimum Spread | 8″ |
| Overall Width | 5″ |
| Headroom | 14-3/4″ |
| Standards | ASME B30.20-1993 |
| Bail Thickness | 3″ and 4″ |
