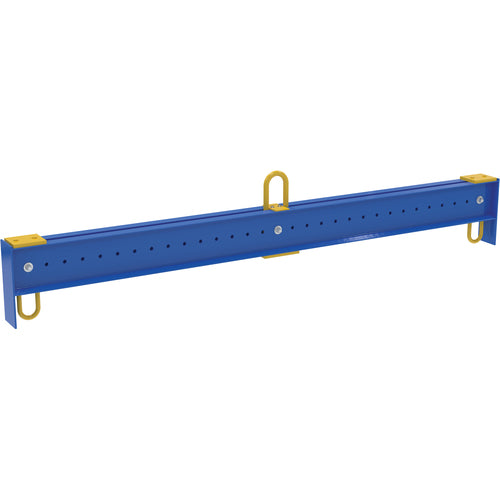

Spreader Beam - 10K Capacity
Item #: RV54SBMBFB10010
Brand: Vestil
Model #: SBM-BFB-100-10
| Product Specifications | |
|---|---|
| Type | Spreader Beam |
| Usable Upper Bail Length | 7-1/2″ |
| Load Capacity | 10000 lbs |
| Usable Upper Bail Width | 4″ |
| Maximum Spread | 120″ |
| Overall Length | 128-1/2″ |
| Minimum Spread | 24″ |
| Overall Width | 6-1/2″ |
| Headroom | 25-1/2″ |
| Standards | ASME B30.20-1993 |
| Bail Thickness | 1-1/4″ |
