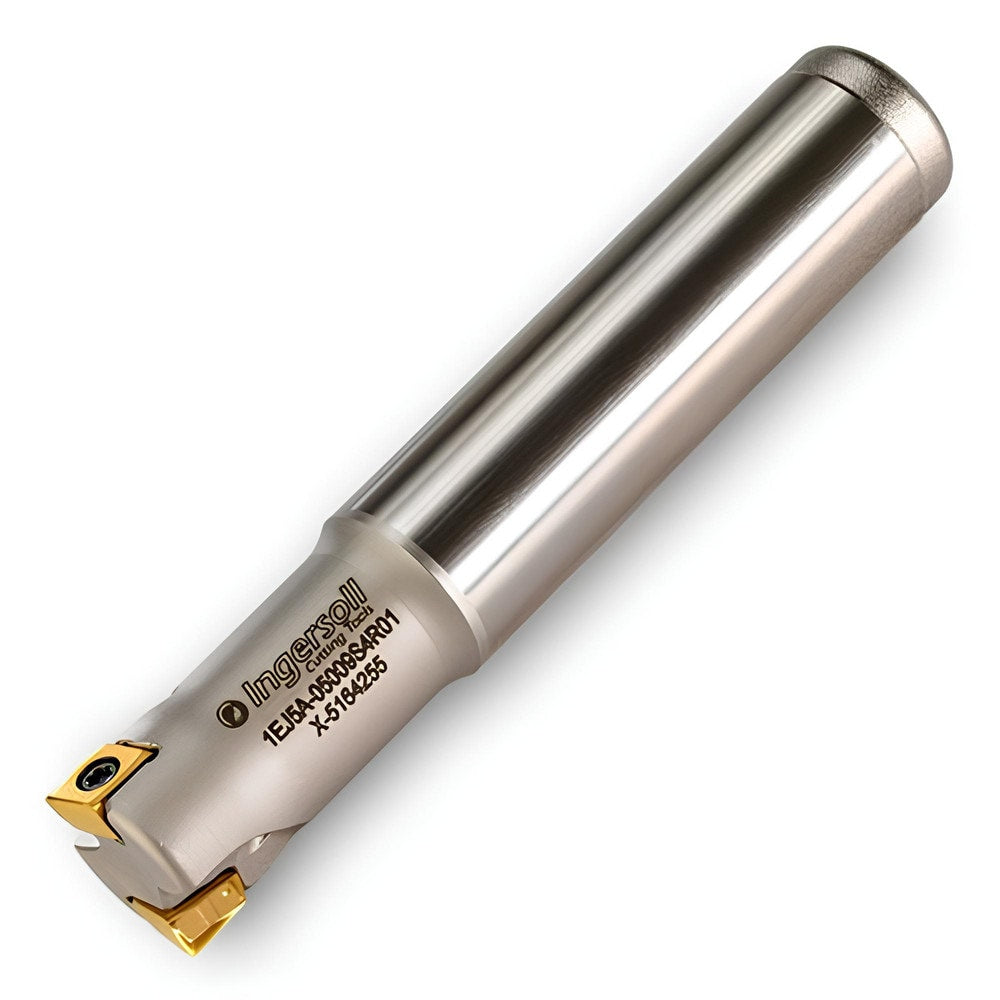

Brand: Ingersoll Cutting Tools / Part #: 2926632
Item #: 96748546
Brand: Ingersoll Cutting Tools
Model #: 2926632
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.5000 |
| Minimum Cutting Diameter (Inch) | 1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
| Maximum Cutting Diameter (Inch) | 1/2 |
| Maximum Depth of Cut (mm) | 4.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1850 |
| Cutter Style | 1EJ5A |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Maximum Ramping Angle | 1.6 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 70.6100 |
| Overall Length (Decimal Inch) | 2.7800 |
| Tool Material | Steel |
| Series | 1EJ5A |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.9800 |
| Shank Length (mm) | 50.290 |
| Head Length (Decimal Inch) | 0.8000 |
| Head Length (mm) | 20.32 |
| Tool Application | Facing; Pocketing; Shouldering; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | CGx101.. |
| Insert Compatibility | CGx101.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1EJ5A-05009S4R02 |
| Usable Length (mm) | 20.320 |
| Number Of Flutes | 3 |
| Usable Length (Decimal Inch) | 0.8000 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
