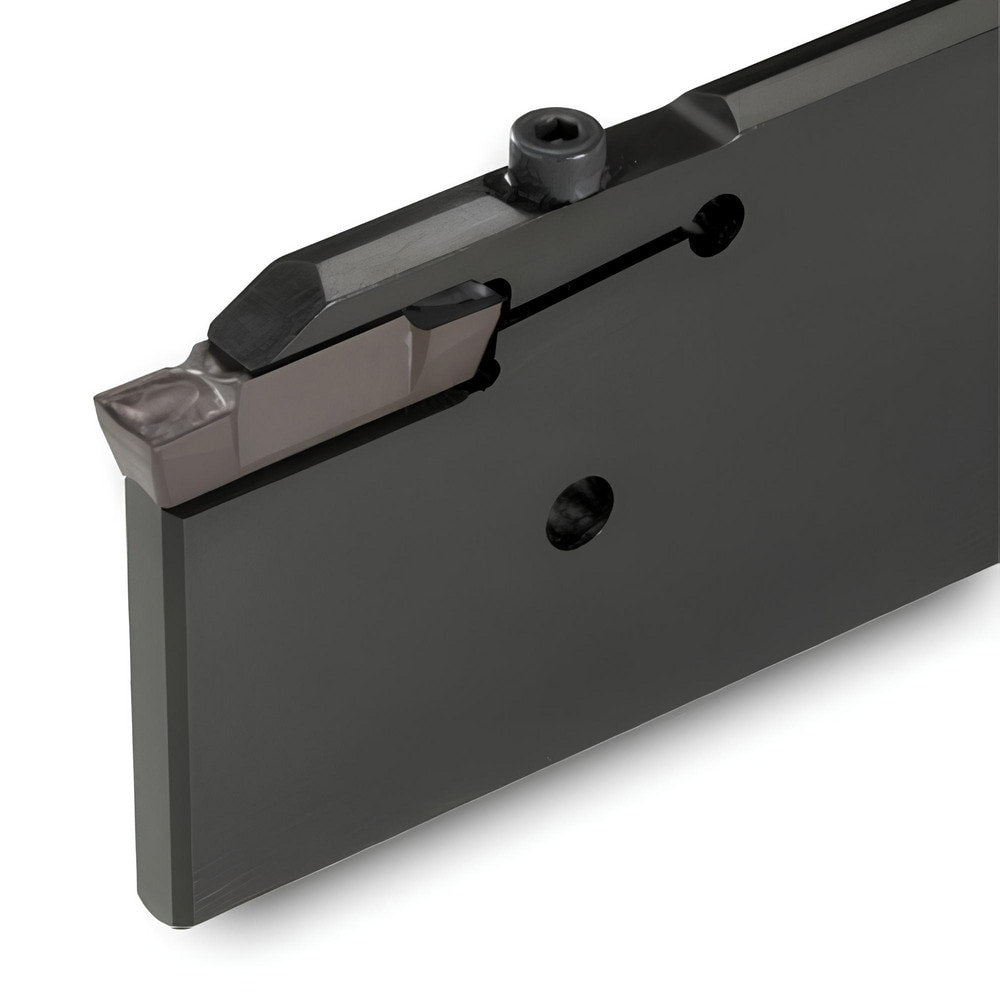

Brand: Ingersoll Cutting Tools / Part #: 2300210
Item #: 87088282
Brand: Ingersoll Cutting Tools
Model #: 2300210
Product Specifications
| End Type | Double-Ended |
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Height (Decimal Inch) | 2.0500 |
| Blade Width (Decimal Inch) | 0.2680 |
| Blade Overall Length (Decimal Inch) | 9.8400 |
| Blade Style | TGB |
| Compatible Insert Style | TDC; TSC |
| Compatible Insert Size Code | 8 |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 4.0000 |
| Series | TGB |
| Tool Block Style | TTBU |
| Insert Style | TDC; TSC |
| Cutting Tool Application | Grooving; Parting |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 8 |
| Maximum Depth of Cut (Decimal Inch) | 1.1420 |
| Cutting Height (Decimal Inch) | 1.7800 |
| Minimum Insert Width (Decimal Inch) | 0.2360 |
| Maximum Insert Width (Decimal Inch) | 0.3150 |
| Complete Insert Compatibility | TDC8..; TSC8.. |
| Complete Tool Block/Toolholder Style Compatibility | TTBU38.1-52 |
| Manufacturers Catalog Number | TGB52-8-CL |
| Insert Type | Cut-Off |
| Blade Type | Double-Sided |
