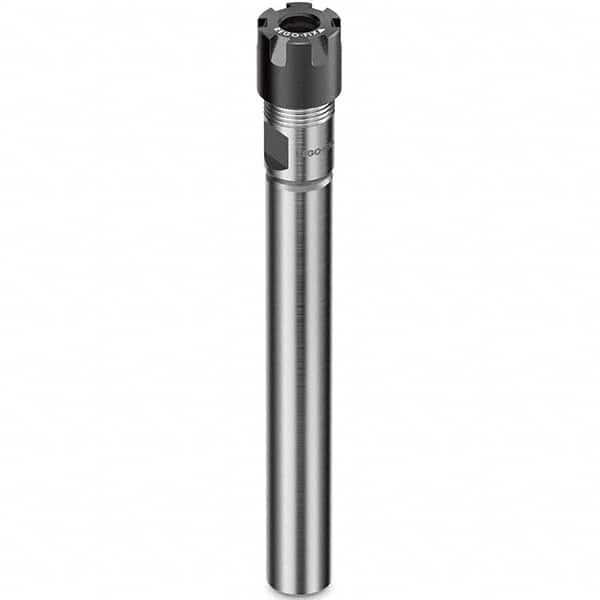

Rego-Fix - 0.5mm x 5mm Straight Shank ER8 Collet Chuck
Item #: 15876485
Brand: Rego-Fix
Model #: 2612.20822
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER8 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 12.00 |
| Projection (mm) | 43.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 5.00 |
| Overall Length (mm) | 60.00 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Shank Length (mm) | 43.00 |
| Nose Diameter (mm) | 12.00 |
| Locknut Diameter (Decimal Inch) | 0.4728 |
| TIR (Decimal Inch) | 0.0002 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 12.00 |
| Additional Information | With Hi-Q Nut |
