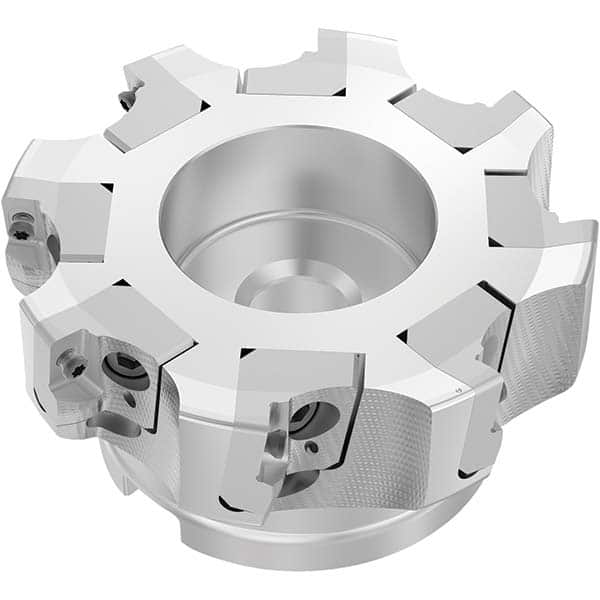

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 125.00 Cutting Diameter (Inch): 4.921 - Exact Tooling

Seco - Indexable Square-Shoulder Face Mills Cutting Diameter (mm): 125.00 Cutting Diameter (Inch): 4.921


Item #: 18139154
Brand: Seco
Model #: 03336127

Product Specifications

Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 125.00 ; Cutting Diameter (Inch): 4.921 ; Arbor Hole Diameter (mm): 40.00 ; Lead Angle: 90 ; Overall Height (mm): 63.00000 ; Insert Compatibility: XOMX; XOEX
Cutting Diameter (mm) 125.00
Cutting Diameter (Inch) 4.921
Arbor Hole Diameter (mm) 40.00
Lead Angle 90
Overall Height (mm) 63.00000
Insert Compatibility XOMX; XOEX
Series R220.69
Through Coolant Yes
Maximum Depth of Cut (mm) 15.00
Cutting Direction Right Hand
Number of Cutter Inserts 8
Insert Holding Method Screw
Cutter Style R220.69
Number of Flutes 8
Rake Positive
Hub Diameter (mm) 90.000
Number of Adjustable Pockets 8
Maximum RPM 7400.000
Toolholder Material Steel
$ 1,692.90

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
