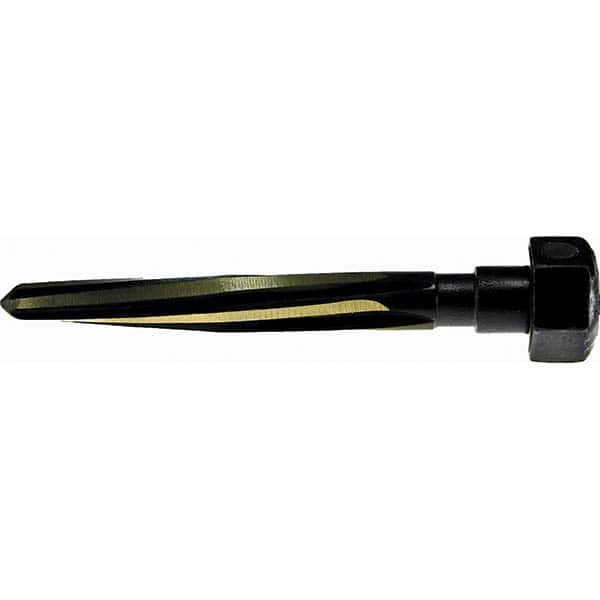

Cle-Line - Bridge/Construction Reamers Reamer Type: Bridge Reamer Reamer Diameter (Decimal Inch): 1-1/4
Item #: 14283493
Brand: Cle-Line
Model #: C36011
Features and Benefits
Bridge reamers are heavy-duty tools designed for enlarging and aligning holes for rivets. Ideal for use in the construction of structural steel assemblies, bridge and ship construction.
Hex shanks are used higher speed machining operations due to its angled shape. They are constructed of six sides and fit into a quick change chuck. They are commmonly made of a 1/4" shank.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Product Specifications
Bridge/Construction Reamers; Reamer Type: Bridge Reamer ; Reamer Diameter (Decimal Inch): 1-1/4 ; Reamer Diameter (Inch): 1-1/4 ; Shank Type: Hex ; Flute Length (Inch): 7-3/8 ; Overall Length (Decimal Inch): 9-3/8
| Reamer Type | Bridge Reamer |
| Reamer Diameter (Decimal Inch) | 1-1/4 |
| Reamer Diameter (Inch) | 1-1/4 |
| Shank Type | Hex |
| Flute Length (Inch) | 7-3/8 |
| Overall Length (Decimal Inch) | 9-3/8 |
| Overall Length (Inch) | 9-3/8 |
| Small End Diameter (Inch) | 1.25 |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Oxide/Gold |
