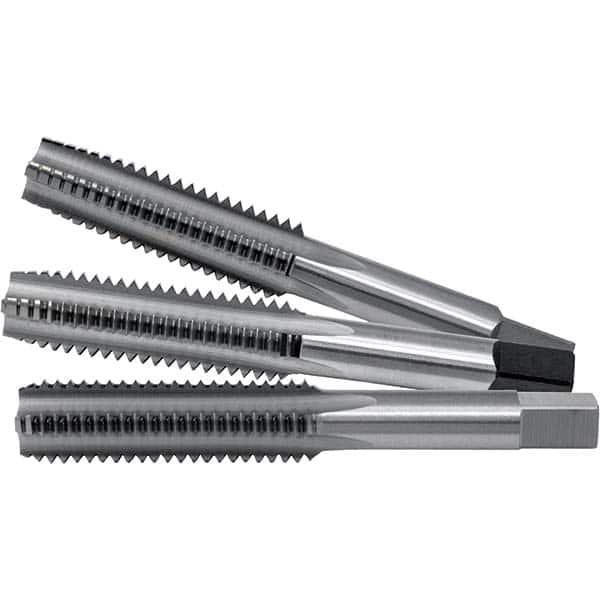

Cle-Line - Tap Sets Number of Flutes: 3 Chamfer: Bottoming; Plug; Taper
Item #: 14285118
Brand: Cle-Line
Model #: C00329
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Tap Sets; Number of Flutes: 3 ; Chamfer: Bottoming; Plug; Taper ; Material: High Speed Steel ; Finish/Coating: Bright ; Thread Direction: Right Hand ; Class of Fit: 2B, 3B
| Number of Flutes | 3 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Class of Fit | 2B, 3B |
| Thread Limit | H2 |
| Thread Length (Inch) | 0.6875 |
| Overall Length (Inch) | 2 |
| Thread Standard | UNC |
| Series/List | 0404 |
| Number of Pieces | 3.000 |
| Case Type | Plastic Case |
