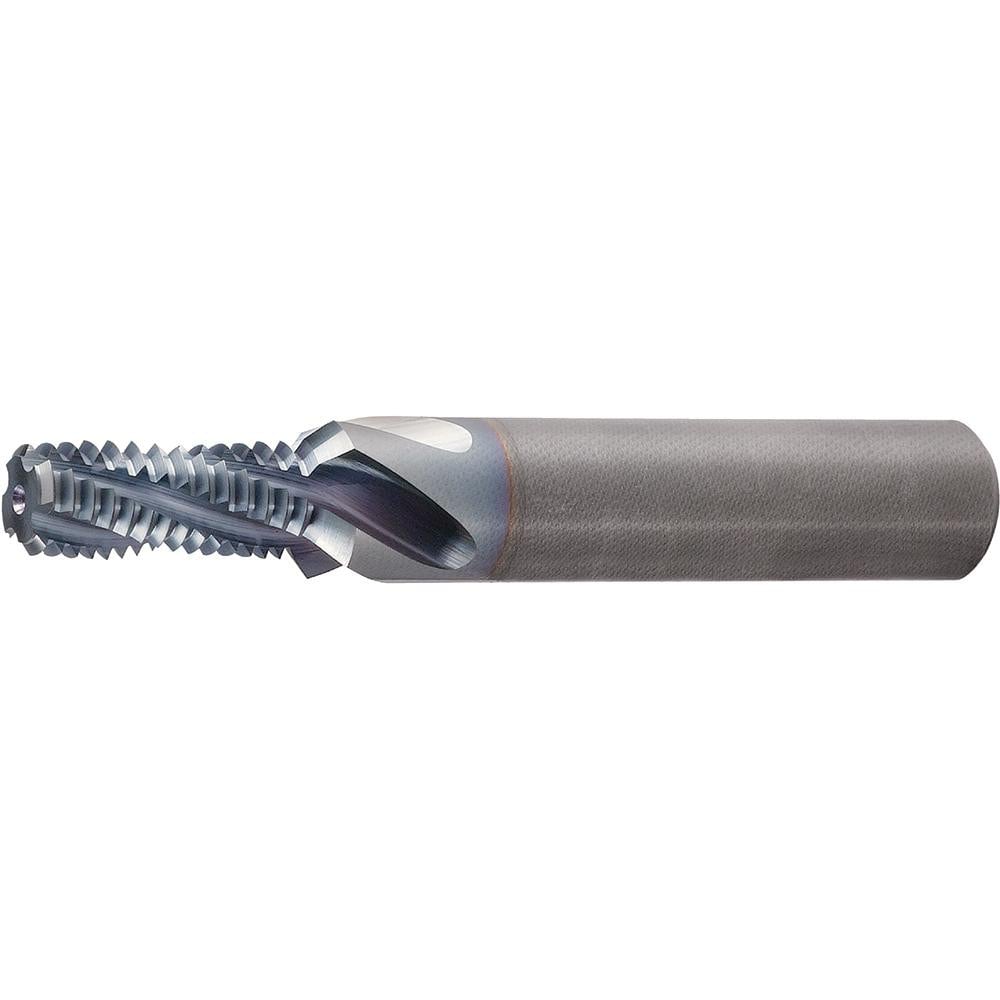

Brand: Widia / Part #: 4138515
Item #: 00155994
Brand: Widia
Model #: 4138515
Product Specifications
| Material | Solid Carbide |
| Thread Depth (mm) | 12.52 |
| Thread Depth | 12.5200 |
| Thread Type | Metric Fine; Metric |
| Shank Diameter (mm) | 8.0000 |
| Cutting Diameter (mm) | 4.80 |
| Shank Type | Cylindrical |
| Length of Cut (mm) | 12.5200 |
| Minimum Nominal Diameter (Decimal Inch) | 0.2006 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 36.0000 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Material Grade | WU12PV |
| Series | GTM21 |
| Number Of Flutes | 3 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Teeth Per Inch | 25.4 |
