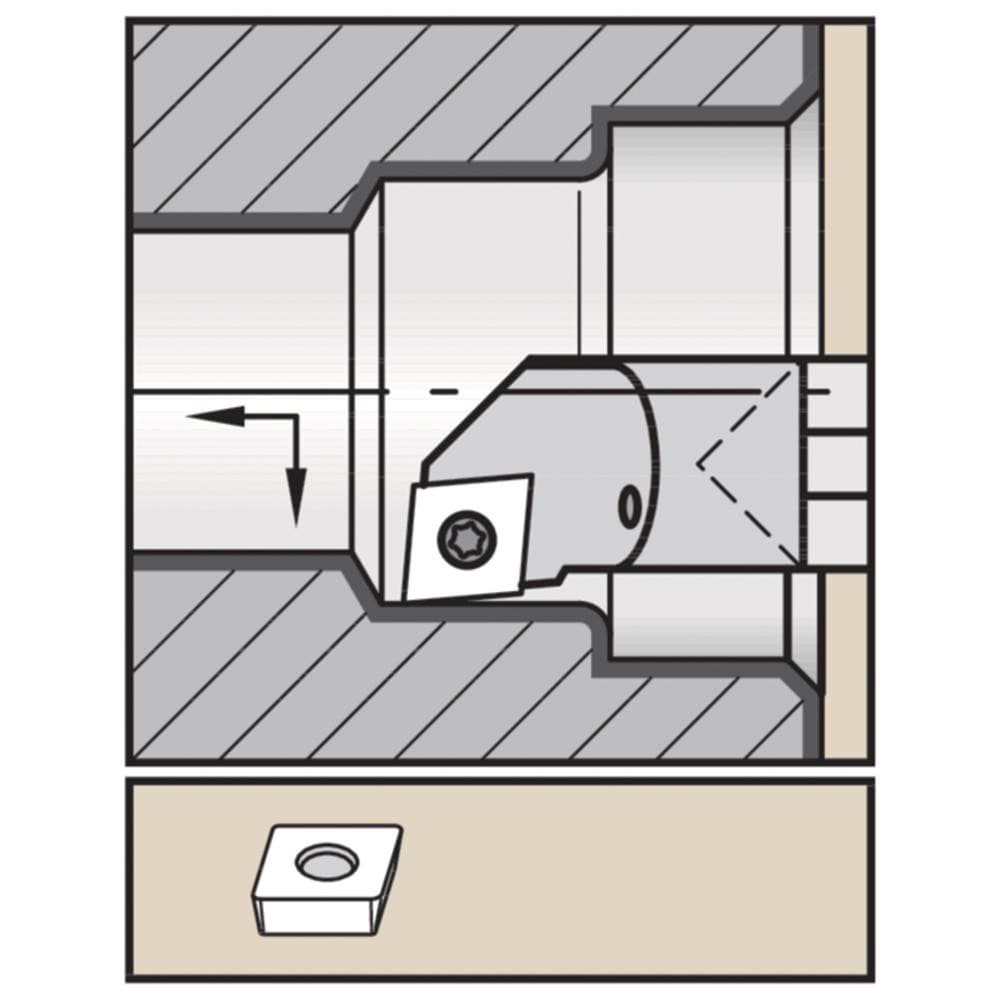

Brand: Widia / Part #: 2031021
Item #: 02778595
Brand: Widia
Model #: 2031021
Product Specifications
| Minimum Bore Diameter (mm) | 13.000 |
| Maximum Bore Depth (mm) | 70.00 |
| Toolholder Style | SCLCR |
| Tool Material | Carbide |
| Shank Diameter (mm) | 10.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 151.2500 |
| Compatible Insert Size Code | CC..060204 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -10.000 |
| Lead Angle | 95.000 |
| Series | E-SCLC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Center to Cutting Edge (mm) | 7.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Hole Diameter (mm) | 3.18 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | E10MSCLCR06 |
| Radial Rake | 0 |
| Coolant Through | Yes |
