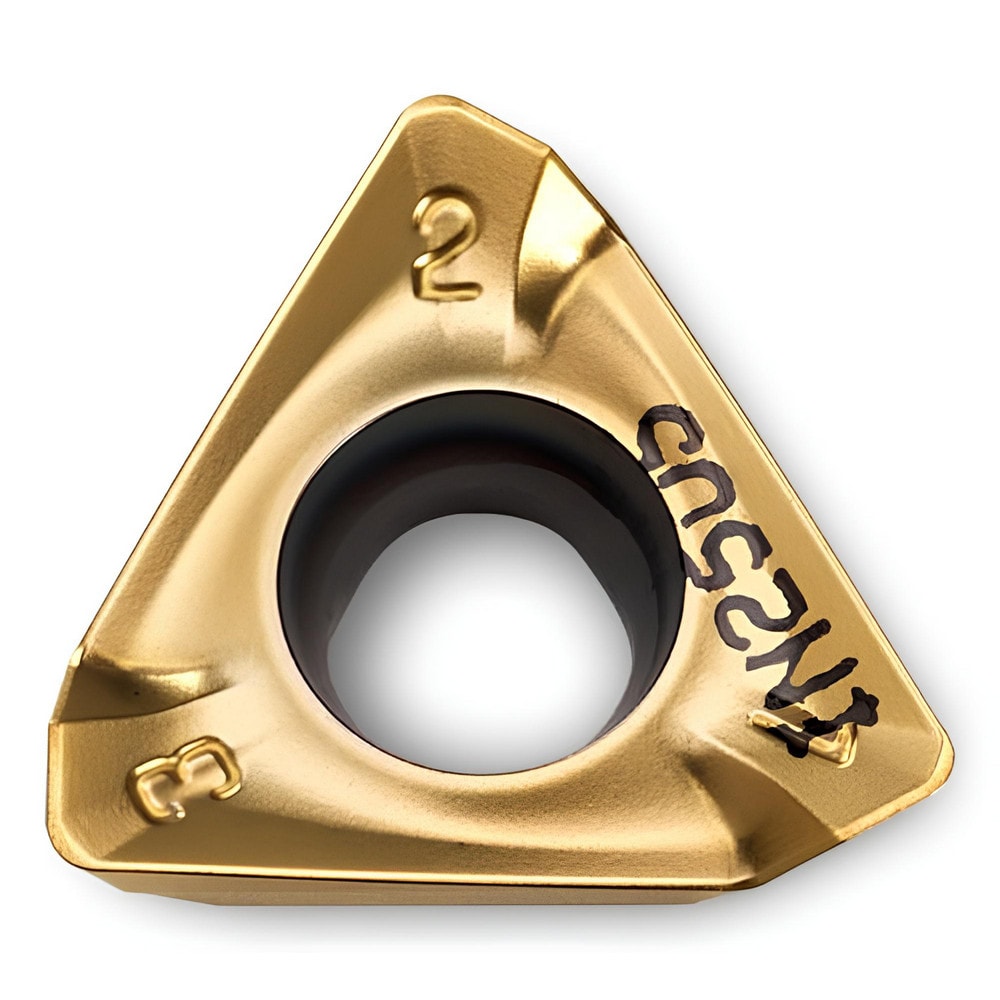

Brand: Ingersoll Cutting Tools / Part #: 5813472
Item #: 94054343
Brand: Ingersoll Cutting Tools
Model #: 5813472
Product Specifications
| Insert Style | THLS |
| Insert Size Code | 100508 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2540 |
| Inscribed Circle (Inch) | 27/64 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | THLS |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | THLS100508R |
| Manufacturers Catalog Number | THLS100508R IN2540 |
| Cutter Series Compatibility | KJ5G; 1KJ1G; KJ6G |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 10.9200 |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.0000 |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 60 |
| Multi-Use Tool | Yes |
